McHale Orbital Round Bale Wrapper
76
11.

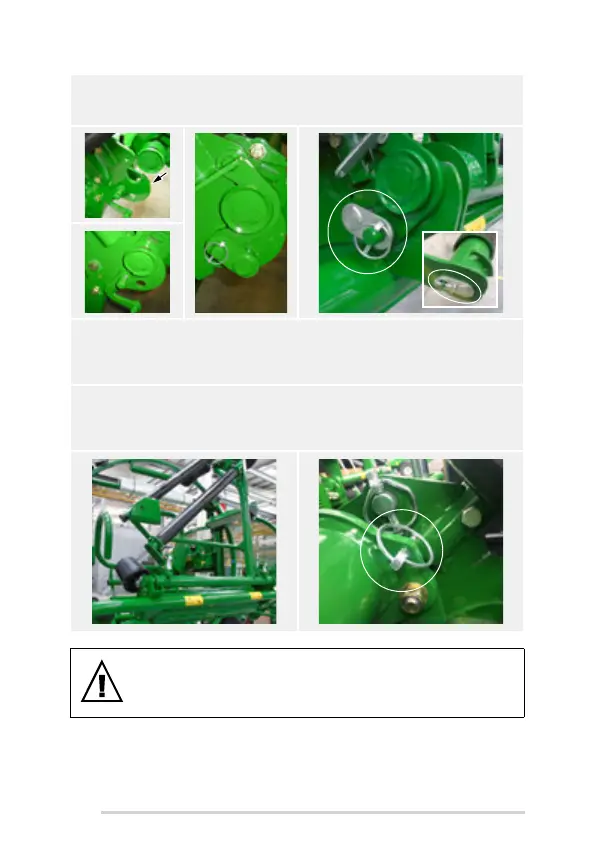

Next, lower the left main pivot onto the left cradle bracket. (
L
) Swing the V-shaped
plate (CZH03852) over the main side-tip pivot on the left mounting bracket and
secure onto the stub shaft using a linch pin. (
N
)
12. The transport pin must be removed from its storage location (S) and repositioned
into the transport position (T) on the rear cradle. When the side-tip is being
transported, the transport pin must be in the transport position. (T) Always use
the linch pin to secure the transport pin in either location.
13. Once the rear cradle is raised to the home position the side-tip is automatically
swung into the vertical transport position, allowing it to be transported safely, as
shown below. Finally an additional linch pin can be installed, as shown, to secure
the gravity latch in position. (R)
WARNING: Remove linch pin (R) before lowering the rear cradle!
It is very important that this linch pin is removed before lowering the rear
cradle again, otherwise the side-tip components are put under undue
strain!
