QUICK START MANUAL Document reference MAVM600MK2MPS-QS/E
VM600
Mk2
machinery protection system (MPS) Edition 2 - February 2021
1-4
Installing a rack
INTRODUCTION TO THE VM600
Mk2
MACHINERY PROTECTION SYSTEM (MPS)
Front
Side view
Rear view
Front view
(PS2) (PS1)
MPC4
Mk2
VM600 VM600 VM600
RPS6U RPS6U
VM600 VM600 VM600
MPC4
Mk2
MPC4
Mk2
MPC4
Mk2
VM600 VM600 VM600 VM600 VM600 VM600 VM600
RLC16
Mk2
RLC16
Mk2
RLC16
Mk2
IOC
Mk2
IOC
Mk2
IOC
Mk2
IOC
Mk2

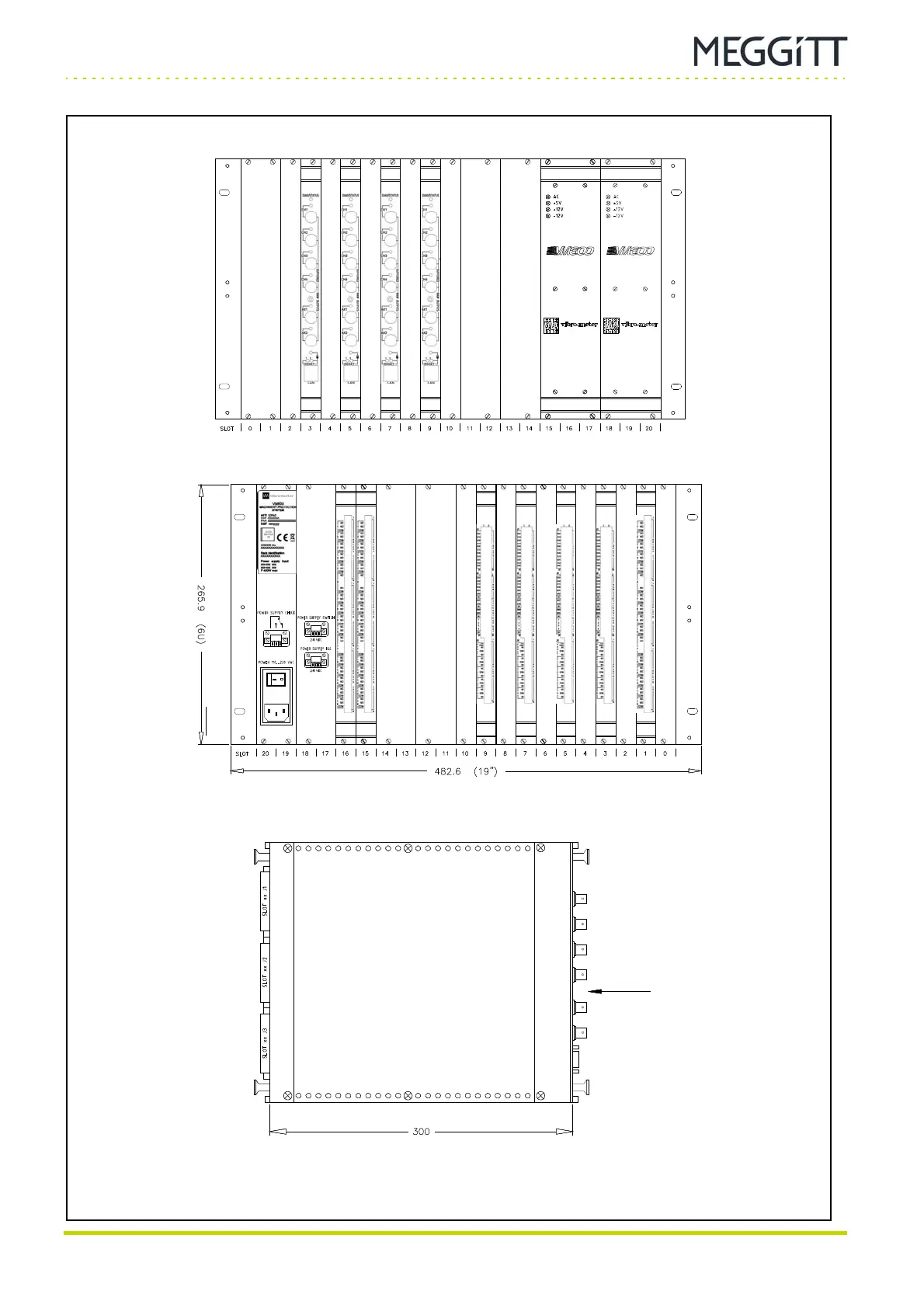

Figure 1-1: Views of a typical VM600
Mk2
/VM600 system rack (ABE040)
with several modules/cards installed
