Meggitt vibro-meter VM600 Quick Start Manual

Document reference MAVM600MK2MPS-QS/E QUICK START MANUAL
Edition 2 - February 2021 VM600
Mk2
machinery protection system (MPS)
2-23
RLC16
Mk2
relay module
OVERVIEW OF VM600
Mk2
MACHINERY PROTECTION SYSTEM (MPS) HARDWARE

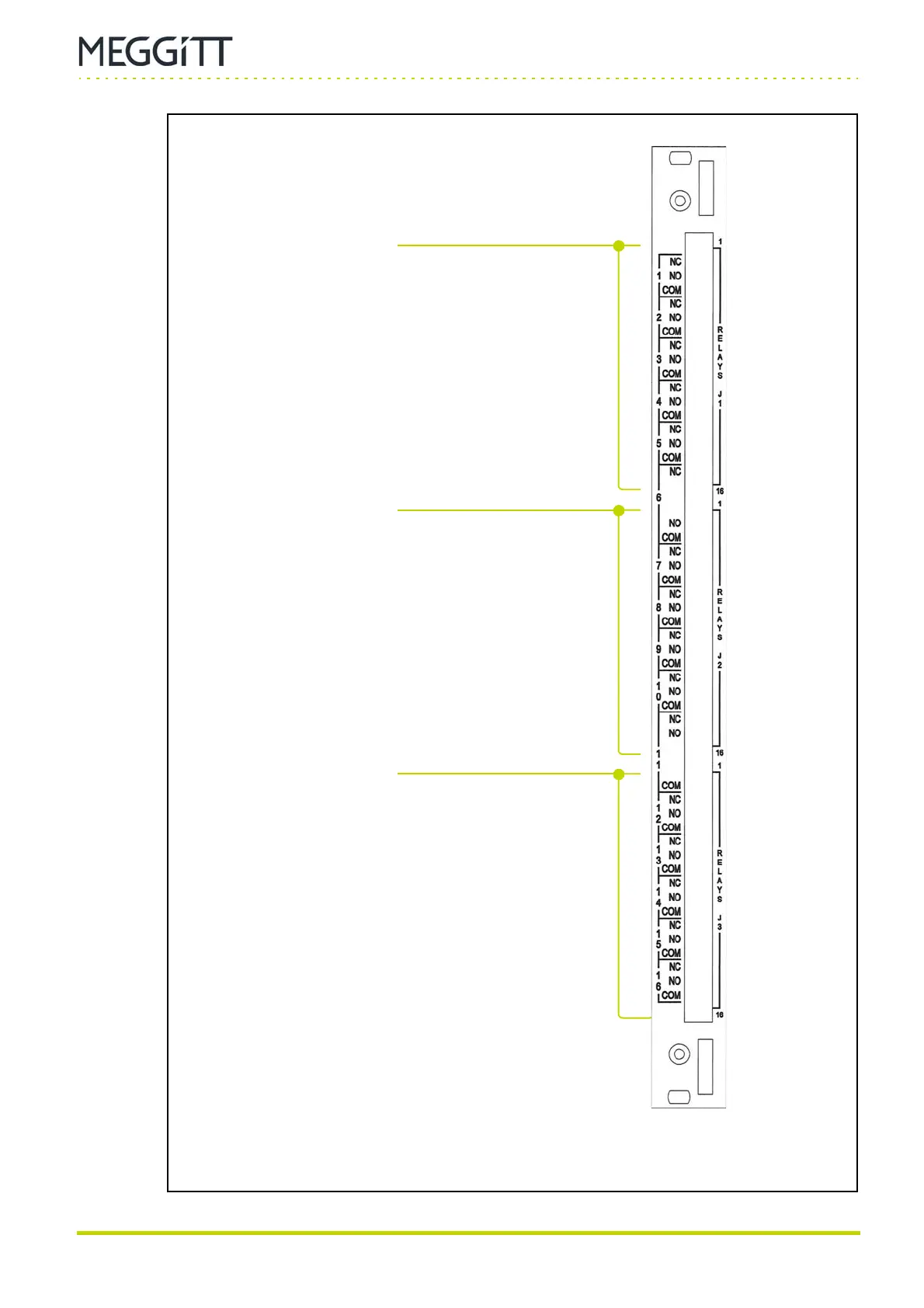

Figure 2-4: RLC16
Mk2
panel (rear of VM600
Mk2
/VM600 rack)
J1 connector
16-pin connector (male).
Compatible with 16-pin MC/SCF plug-in connectors
(female) with screw-terminal connections.
Connections:
• Outputs (contacts) for relays RL1 to RL6.
J2 connector
16-pin connector (male).
Compatible with 16-pin MC/SCF plug-in connectors
(female) with screw-terminal connections.
Connections:
• Outputs (contacts) for relays RL6 to RL11.
J3 connector
16-pin connector (male).
Compatible with 16-pin MC/SCF plug-in connectors
(female) with screw-terminal connections.
Connections:
• Outputs (contacts) for relays RL11 to RL16.
