Removal: It is recommended to push both snap-fits of the dustproof plate from the inside of the enclosure with
tools, so that the snap-fits can be separated from the mid-enclosure. Now, the dustproof plate is removed.
Note: Removing the dustproof plate from the outside of the enclosure directly may damage it or the
mid-enclosure.
Installation: Place the snap-fit on one end of the dustproof plate into the mid-enclosure, move the dustproof
plate to another end while pressing it till the snap-fit on another end also enters into the mid-enclosure. Now,
the dustproof plate is installed.
Note: Do not press the dustproof plate forcibly if it is deformed, otherwise, it may be damaged.
2.2 Installation environment
When selecting the installation environment, the following issues should be taken into account:
·The ambient temperature should be within -10℃~40℃. If the temperature is between 40℃~50℃, derating is
required.
·The humidity should be within 5％~95％ RH, non-condensing.
·The vibration at the installation place should be less than 5.9m/s
2
(0.6g).
·The device should be protected from the direct sunlight.
·The device should be mounted in the location free of dust and metal powder.
·Do not install the device in the place with corrosive gas and explosive gas.
If there is any special installation requirement, please consult our company.
2.3 Mounting direction and space
In general, the drive shall be installed vertically to avoid poor heat dissipation.
For the installation spacing and distance requirement, please refer to Fig.2-2 and Fig.2-3.

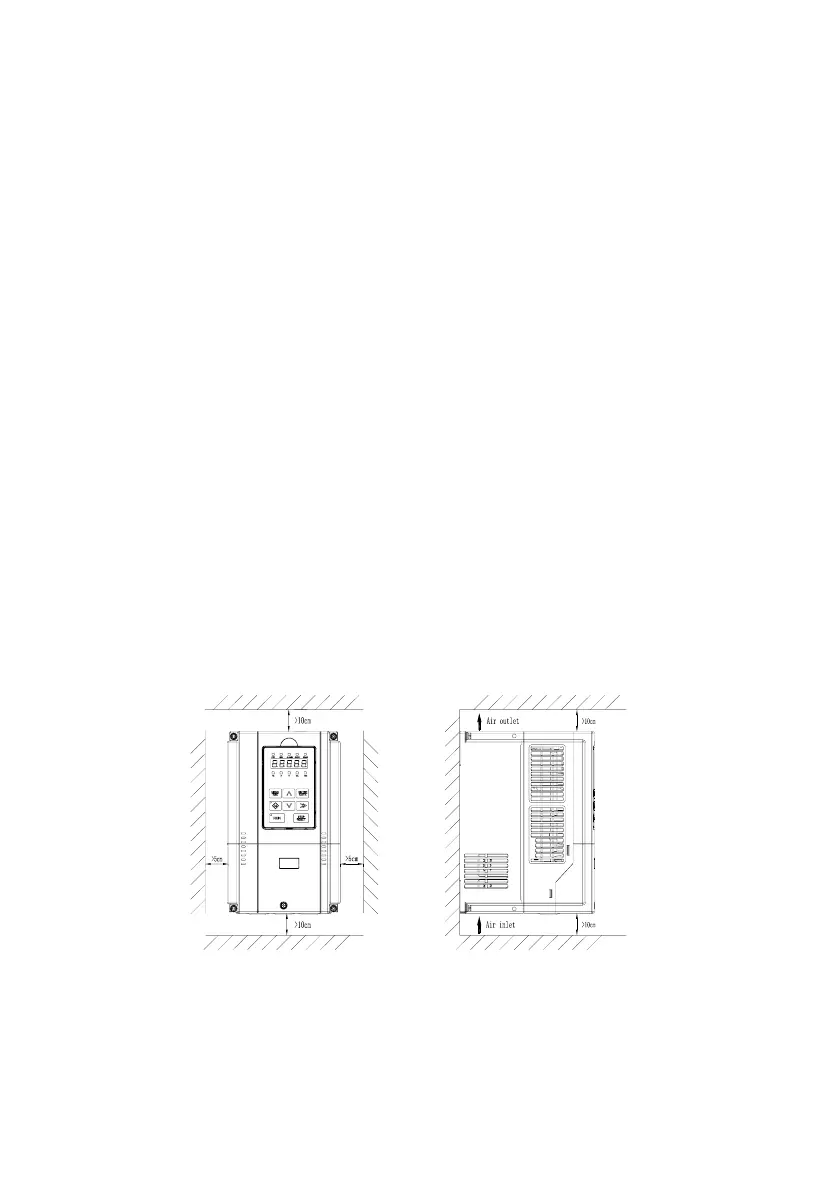

Fig. 2-2 Installation spacing for models of 45kW and below
