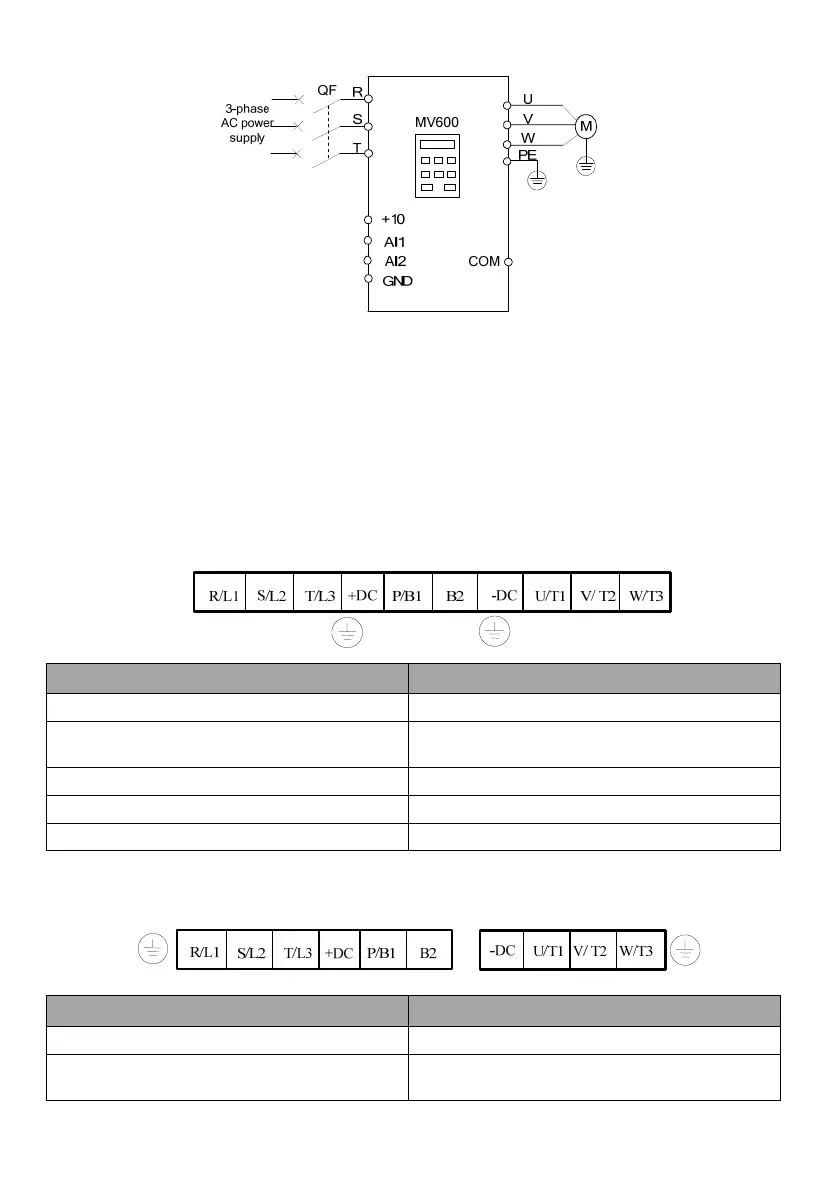

Fig. 3-1 Simple wiring diagram for main circuit
3.1 Wiring and configuration of main circuit terminals
3.1.1 Types of main circuit input/output terminals
There are six types of main circuit terminals, due to different drive models. The detailed descriptions are as
follows:
Terminal type 1
Applicable models: MV600G-4T0.75~MV600G-4T15
Te r min al Function
R/L1, S/L2, T/L3
Three-phase AC 380V input terminals
+DC, P/ B 1
Reserved for external DC reactor, connected with copper bus
upon delivery
P/ B 1, B2
Reserved for external braking resistor
-DC
DC negative bus output terminals
U/T1, V/T2, W/T3 Three-phase AC output terminals
Terminal type 2
Applicable models: MV600G-4T18.5~MV600G-4T30
Te r min al Function
R/L1, S/L2, T/L3
Three-phase AC 380V input terminals
+DC, P/ B 1
Reserved for external DC reactor, connected with copper bus
upon delivery
