Megmeet MV600 Series User Manual

21
P/ B 1, B2
Reserved for external braking resistor
-DC DC negative bus output terminals
U/T1, V/T2, W/T3
Three-phase AC output terminals

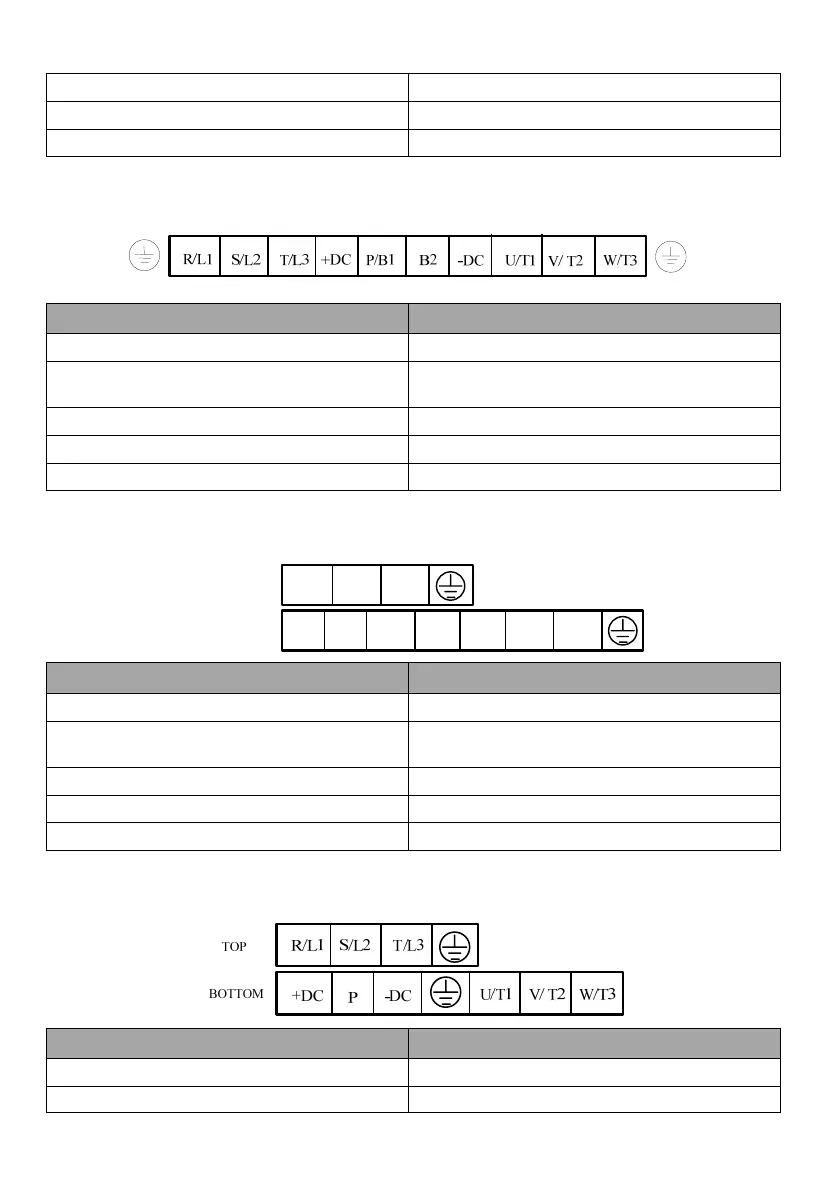

Terminal type 3
Applicable models: MV600G-4T37~MV600G-4T45
Te r min al Function
R/L1, S/L2, T/L3 Three-phase AC 380V input terminals
+DC, P/ B 1
Reserved for external DC reactor, connected with copper bus
upon delivery
P/ B 1, B2
Reserved for external braking resistor
-DC DC negative bus output terminals
U/T1, V/T2, W/T3
Three-phase AC output terminals
Terminal type 4
Applicable models: MV600G-4T55~MV600G-4T75
R/L1 S/L2 T/L3
TOP
+DC W/T3P/B 1 B2 -DC U/T1 V/ T2
BOTTOM
Te r min al Function
R/L1, S/L2, T/L3
Three-phase AC 380V input terminals
+DC, P/ B 1
Reserved for external DC reactor, connected with copper bus
upon delivery
P/ B 1, B2
Reserved for external braking resistor
-DC
DC negative bus output terminals
U/T1, V/T2, W/T3 Three-phase AC output terminals
Terminal type 5
Applicable models: MV600G-4T90~MV600G-4T315
Te r min al Function
R/L1, S/L2, T/L3
Three-phase AC 380V input terminals
P, + D C
Reserved for external DC reactor, connected with copper bus
