14
the air inlet port of the drive as possible; if ventilation is poor in the cabinet, it is recommended to increase fan
forced air cooling for the reactor to avoid high ambient temperature.

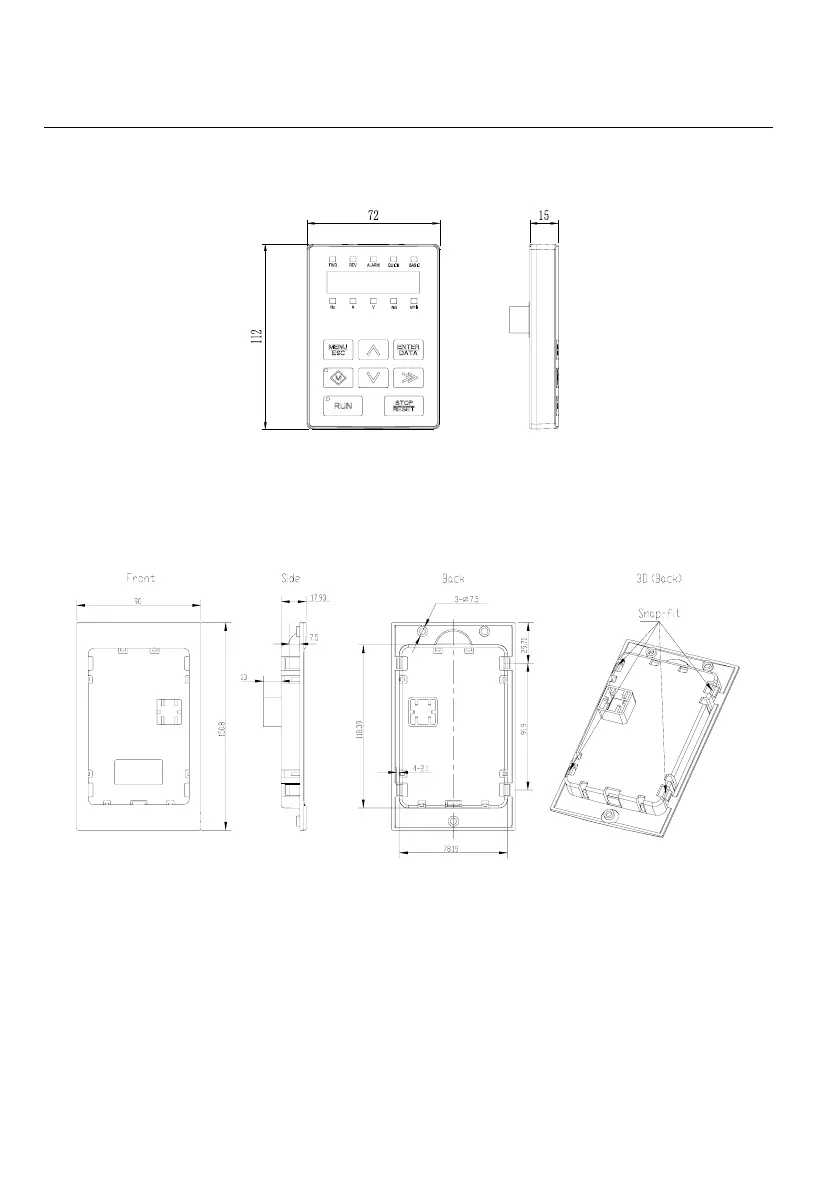

1.7 Outline and mounting dimensions of operation panel
Fig. 1-7 Outline and mounting dimensions of operation panel
1.8 Outline and mounting dimensions of operation panel box
The outline dimensions of the box used for mounting operation panel is as shown in Fig. 1-8.
Fig. 1-8 Outline dimensions of operation panel box
The mounting dimensions of the operation panel box are as shown in Fig. 1-9.
