22
upon delivery
P, - D C
Reserved for external braking unit
-DC
DC negative bus output terminals
U/T1, V/T2, W/T3 Three-phase AC output terminals

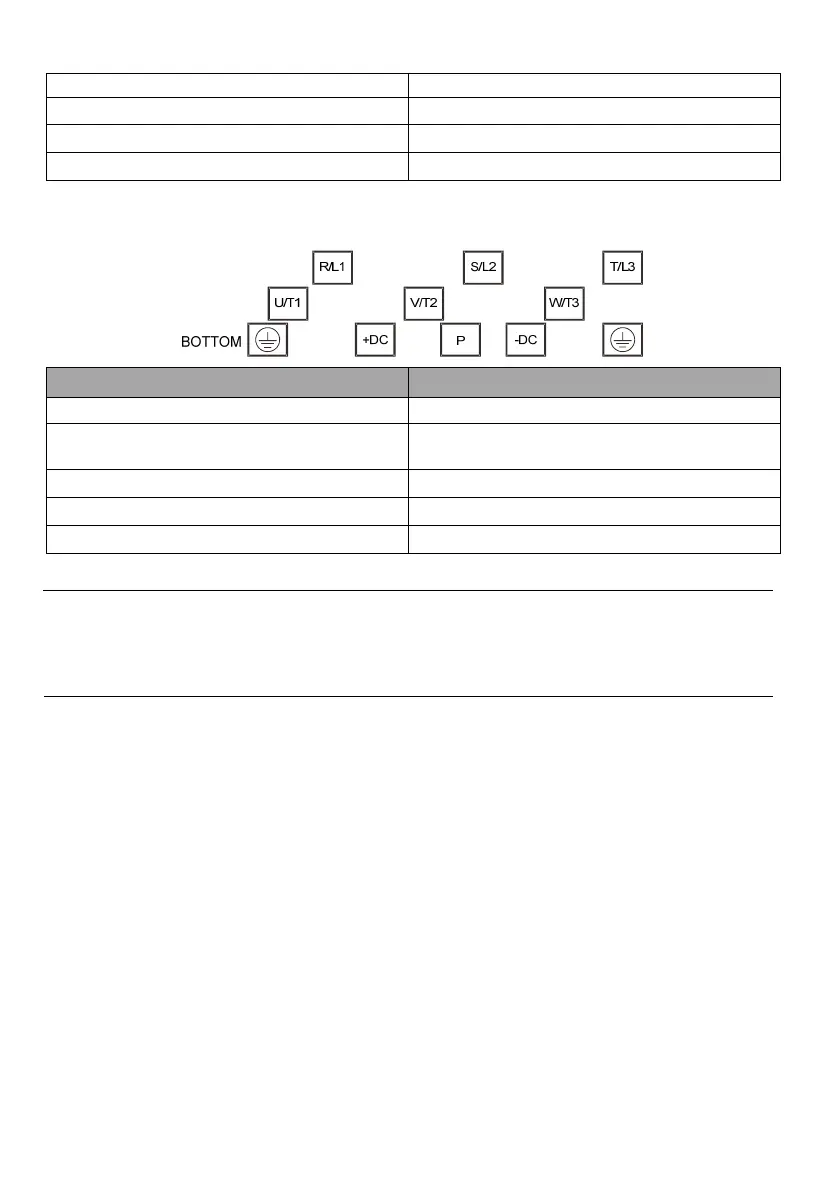

Terminal type 6
Applicable models: MV600G-4T355~MV600G-4T400
Te r min al Function
R/L1, S/L2,T/L3 Three-phase AC 380V input terminals
P, + D C
Reserved for external DC reactor, connected with copper bus
upon delivery
P, - D C
Reserved for external braking unit
-DC
DC negative bus output terminals
U/T1, V/T2, W/T3
Three-phase AC output terminals
Note
In the common DC bus application, the positive pole and the negative pole of the DC input should be
connected to the terminals +DC and -DC respectively, and then the limiting current resistor used for protecting
the rectifier inside drive will be valid when powering on.
