NON-BIGFOOT GEAR HOUSING
Page 6A-32 90-828631R3 MARCH 1999
Bearing Carrier
NEEDLE BEARING
1. The condition of the carrier needle bearing can be determined by inspecting its running
surface on the propeller shaft.
2. If the shaft is discolored (from lack of oil) or pitted, replace bearing and shaft.
3. Bearing can be removed by using Driver Rod (91-37323) and Driver (91-37312). Re-
moving bearing will also remove both propeller shaft seals.

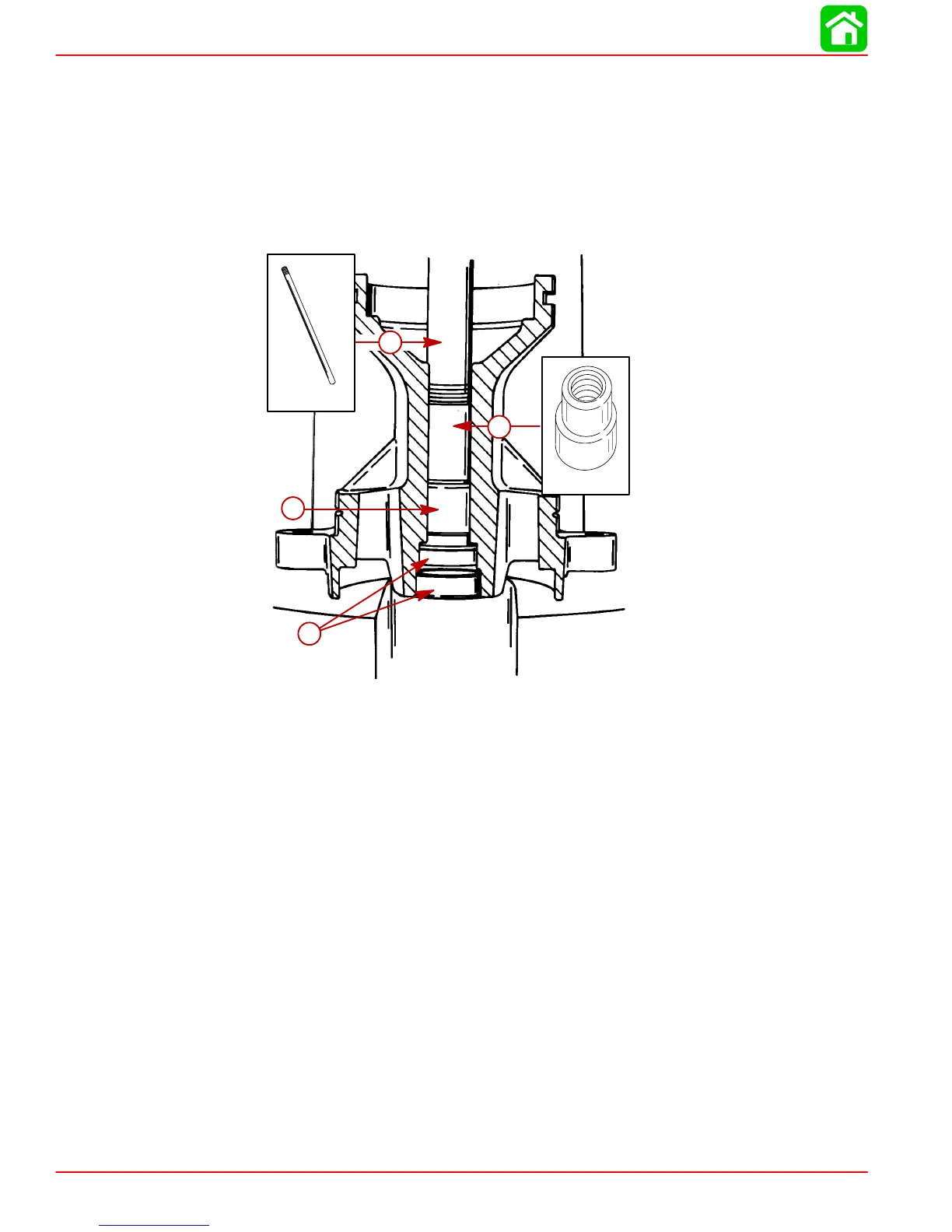

51264
91-37312
91-37323
a
b
c
d
a-Driver Rod (91-37323)
b-Driver (91-37312)
c-Needle Bearing
d-Seals
4. Apply Super Duty Gear Lubricant to O.D. of bearing.
5. Install bearing using Mandrel 91-817011.
