NON-BIGFOOT GEAR HOUSING
Page 6A-3190-828631R3 MARCH 1999
Reverse Gear Bearing
1. Inspect bearing for rust, roughness or excessive wear (looseness).
2. If bearing is in serviceable condition, DO NOT remove bearing from gear as removal will
damage bearing.
3. If bearing must be replaced, remove bearing from gear using Universal Puller Plate
(91-37241) and Driver (91-37312).
4. Install new bearing using a suitable mandrel. PRESS ONLY ON INNER RACE when
installing bearing.

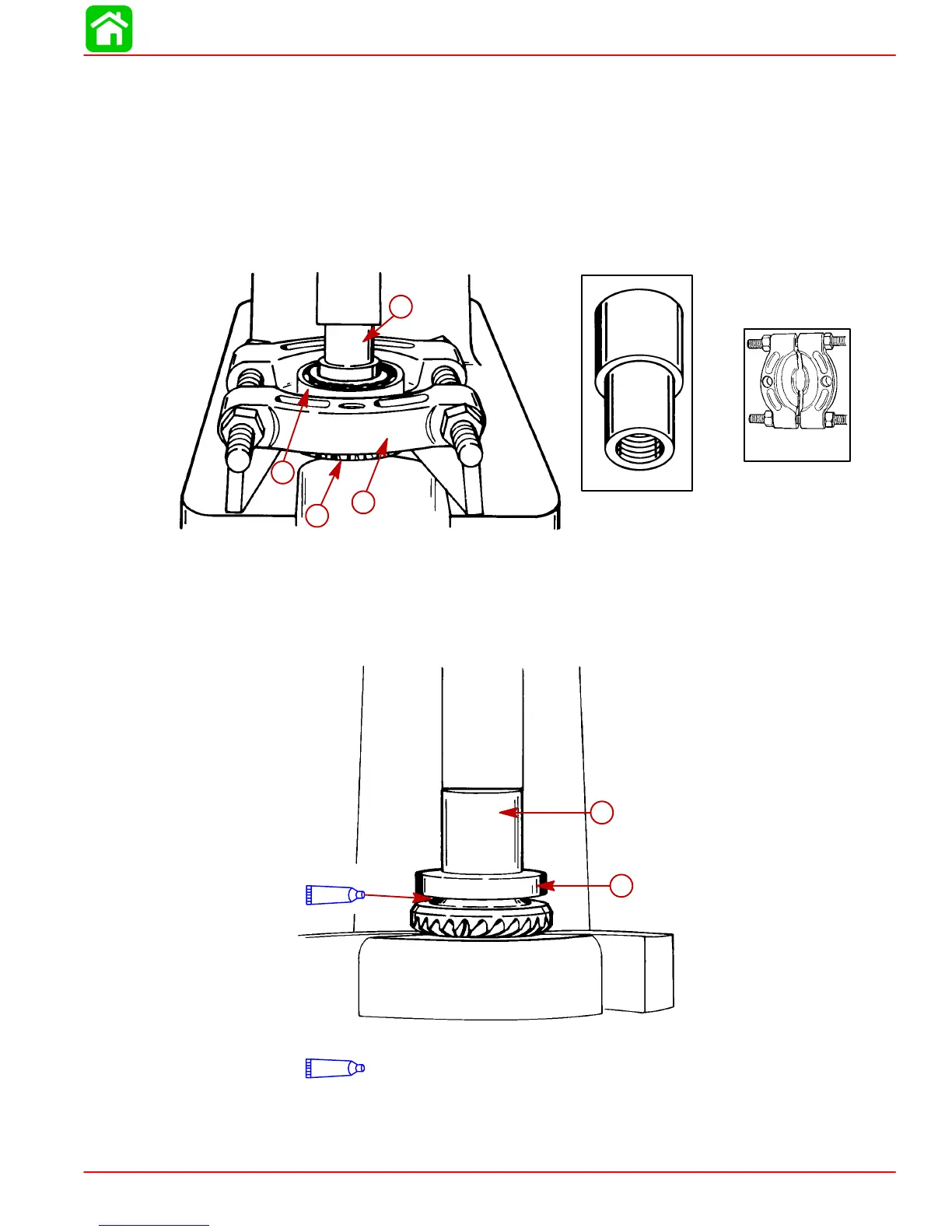

REMOVAL
91-37312
91-37241
d
a
b
c
a-Bearing
b-Reverse Gear
c-Universal Puller Plate (91-37241)
d-Driver (91-37312)
INSTALLATION
52867
87
a
b
87
Super Duty Gear Lubricant (92-850737A1)
a-Mandrel (1-1/4 in. socket)
b-Bearing
