NON-BIGFOOT GEAR HOUSING
Page 6A-30 90-828631R3 MARCH 1999
Propeller Shaft and Carrier Inspection

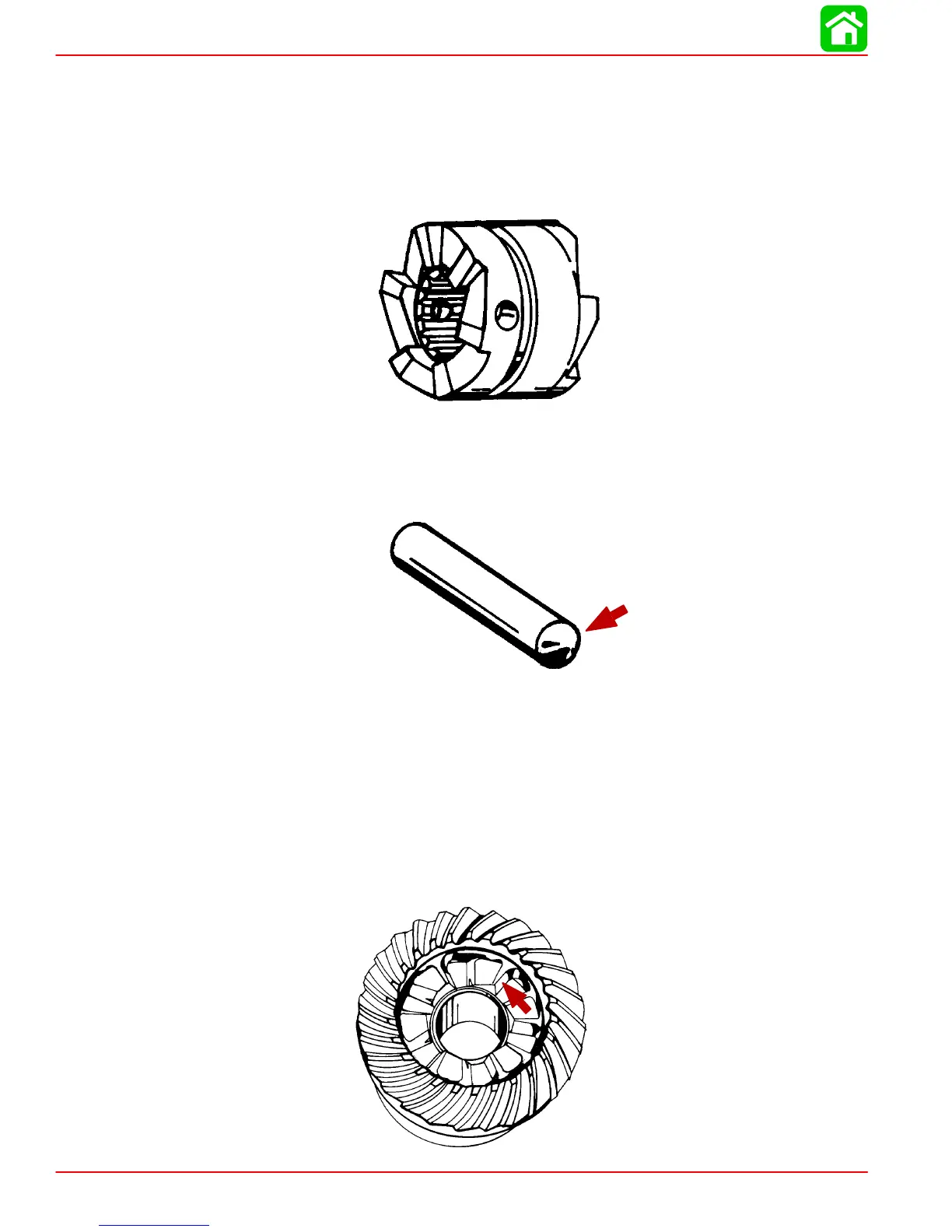

Clutch
1. Inspect clutch dogs for chips or rounding off.
2. If wear is present, inspect corresponding forward or reverse gear matching dogs for sim-
ilar wear. Replace appropriate components as required.
52824
Cam Follower
1. Inspect cam follower for wear or galling.
2. If wear is present, inspect corresponding shift cam for wear. Replace if worn.
52822
Reverse Gear
1. Inspect reverse gear teeth for rust, pits, chipping, excessive wear (teeth are sharped
edged) or broken teeth.
2. Inspect reverse gear clutch jaws for wear. Rounded jaws indicate the following:
• Improper shift cable adjustment.
• Engine idle speed too high.
• Shifting too slowly.
52875
