NON-BIGFOOT GEAR HOUSING
Page 6A-2990-828631R3 MARCH 1999

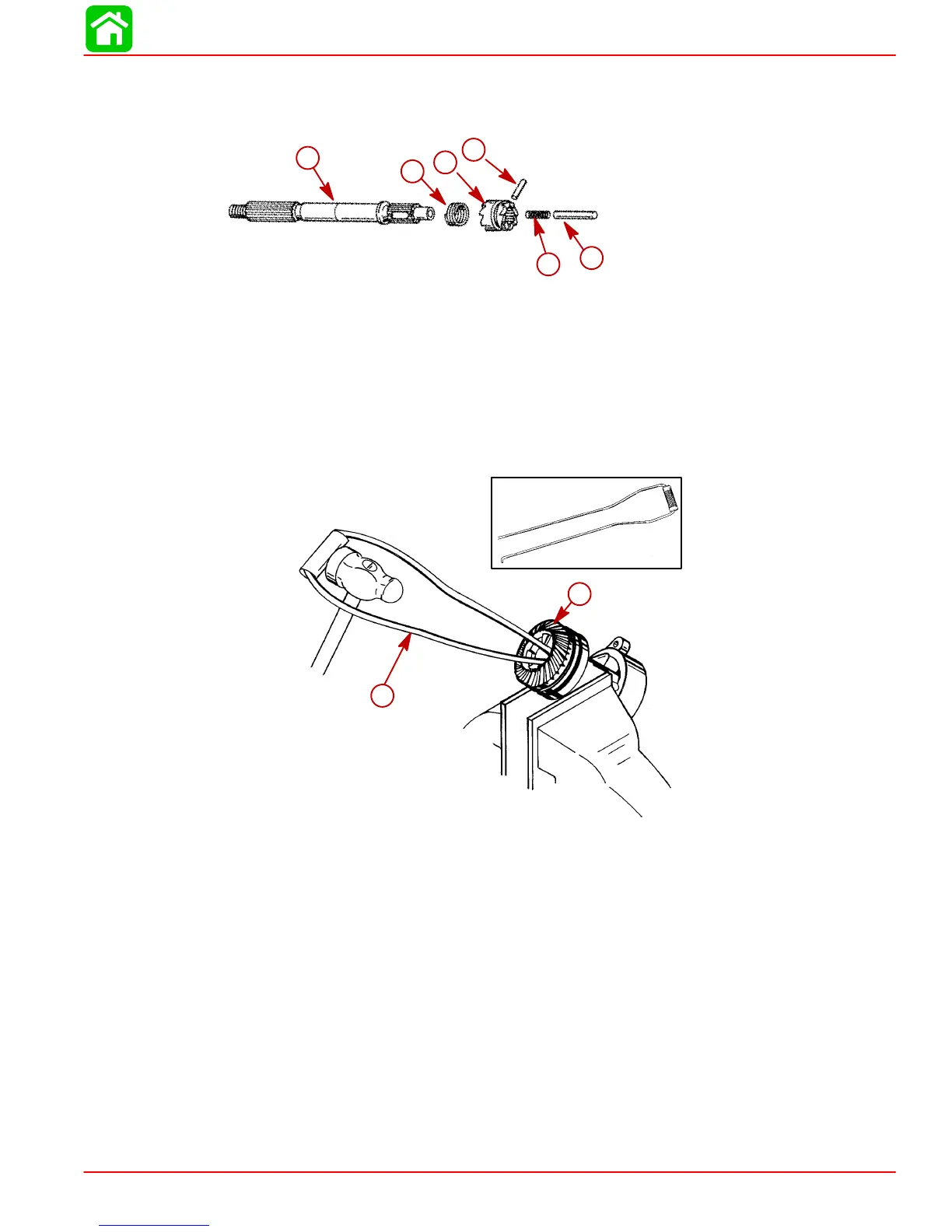

Propeller Shaft Disassembly
1. Remove propeller shaft from carrier and disassemble shaft.
c
d
e
a
b
f
a-Prop Shaft
b-Retaining Spring
c-Clutch Dog
d-Cross Pin
e-Cam Follower Spring
f-Cam Follower
2. Remove reverse gear and bearing from carrier with Puller (91-27780).
52840
91-27780
b
a
a-Reverse Gear and Bearing
b-Puller (91-27780)
