NON-BIGFOOT GEAR HOUSING
Page 6A-3790-828631R3 MARCH 1999

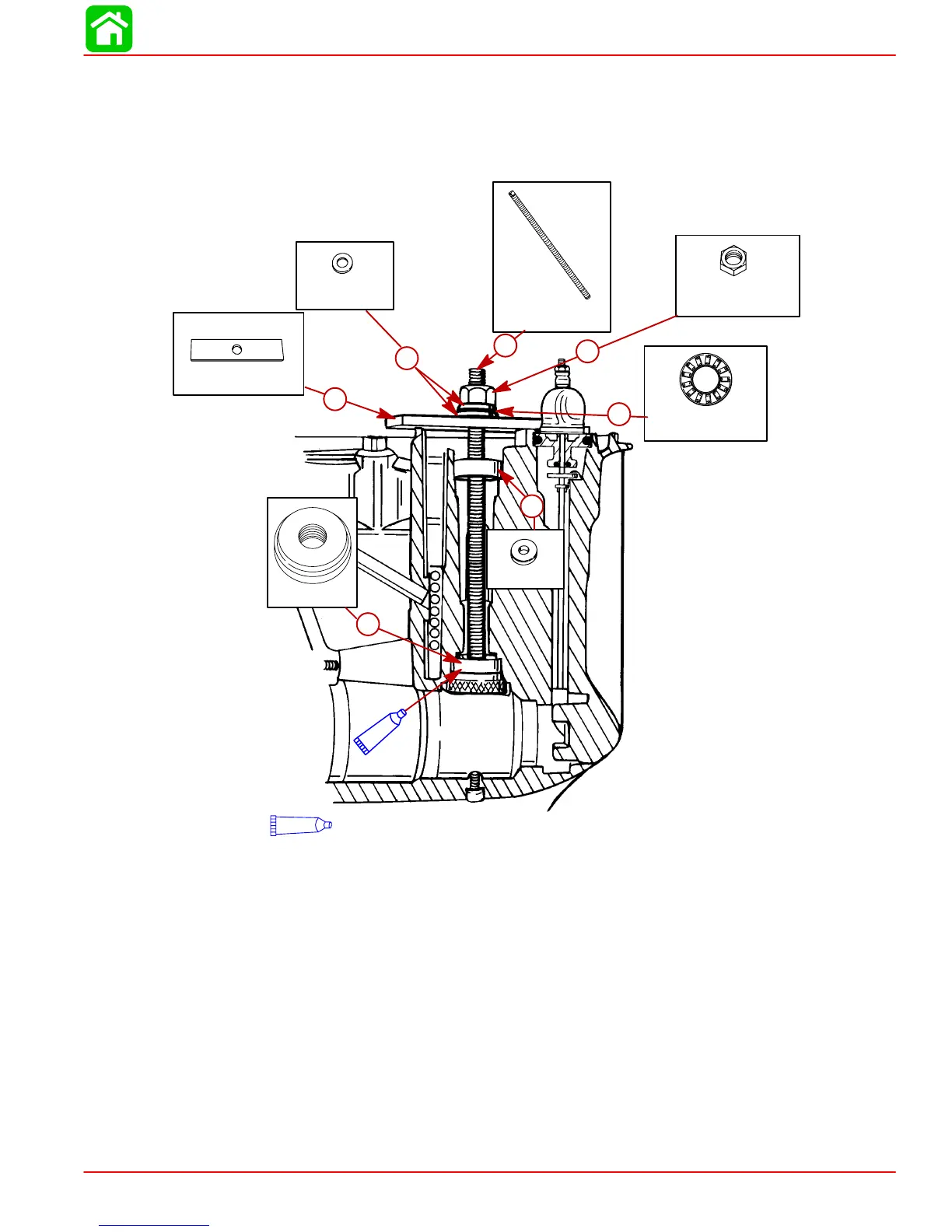

Pinion Bearing Race
1. Apply Super Duty Gear Lubricant to O.D. of race.
2. Position race in gear housing (NUMBERS UP - TAPERED SIDE FACING DOWN).
3. Draw race up into housing until seated.
52842
87
91-29310
12-34961
91-825198
91-31229
11-24156
31-85560
91-825199
b
e
g
87
Super Duty Gear Lubricant (92-850737A1)
d
c
f
a
a-Threaded Rod (91-31229)
b-Washer(2) (12-34961)
c-Bearing (31-85560)
d-Plate (91-29310)
e-Pilot (91-825199)
f-Nut (11-24156)
g-Mandrel (91-825198)
