NON-BIGFOOT GEAR HOUSING
Page 6A-38 90-828631R3 MARCH 1999
Forward Gear

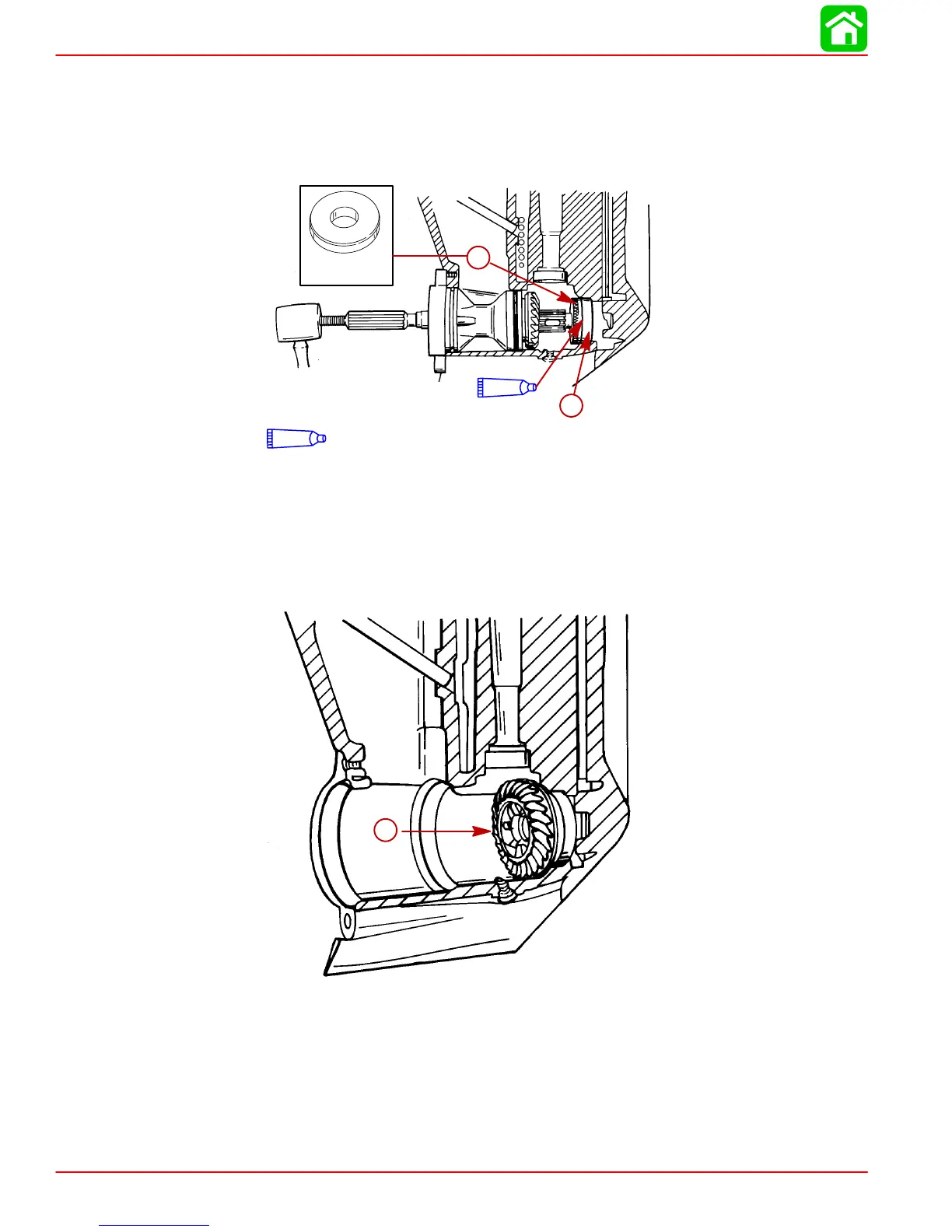

1. Apply Super Duty Gear Lubricant to O.D. of race. Install forward gear bearing race into
housing using Mandrel 91-36571 and propeller shaft. Use a lead hammer on prop shaft
to prevent damage to threads. Bearing carrier should be installed to keep prop shaft
centered while seating race.
52843
87
87
Super Duty Gear Lubricant (92-850737A1)
91-36571
b
a
a-Race
b-Mandrel (91-36571)
NOTE: Remove drain plug/magnet assembly from gear case (if installed) to prevent pos-
sible breakage of magnet if struck by forward gear.
2. Install forward gear and bearing assembly into forward gear race.
52870
a
a-Forward Gear Assembly
To Next Page
