NON-BIGFOOT GEAR HOUSING
Page 6A-40 90-828631R3 MARCH 1999

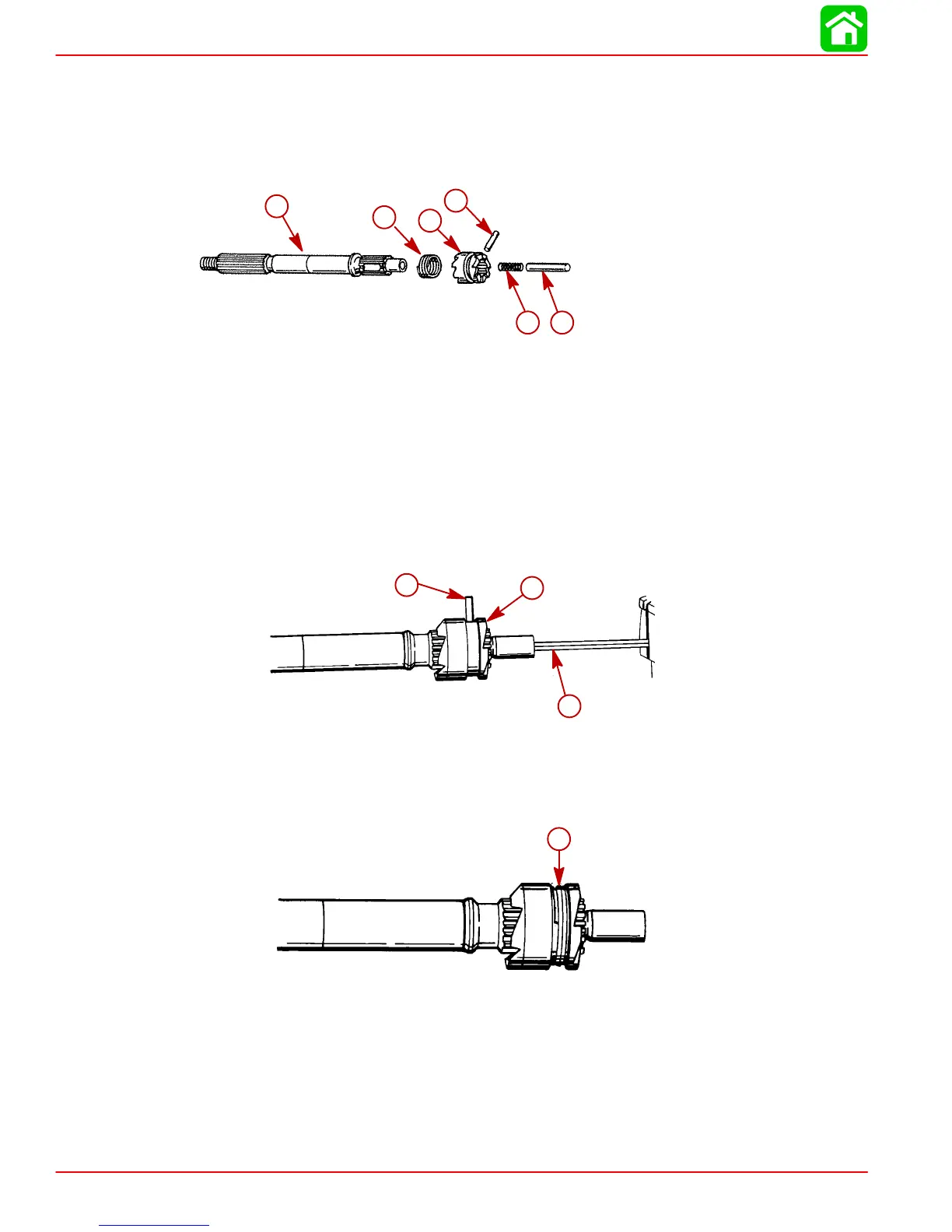

Propeller Shaft
1. Slide clutch (short shoulder faces forward gear) over propeller shaft aligning cross pin
hole with slot in propeller shaft.
2. Insert cam follower spring into propeller shaft.
a
b
d
e
f
c
a-Prop Shaft
b-Retaining Spring
c-Clutch Dog
d-Cross Pin
e-Cam Follower Spring
f-Cam Follower
3. Using a 3/16 in. allen wrench or similar device, compress the follower spring enough to
insert the cross pin partially through clutch.
4. Remove wrench and press cross pin through clutch and propeller shaft until flush.
52851
c
a
b
a-Short Shoulder
b-Allen Wrench
c-Cross Pin
5. Reinstall retaining spring. position spring so as spring coils lay flat in clutch groove.
a
a-Spring
