NON-BIGFOOT GEAR HOUSING
Page 6A-44 90-828631R3 MARCH 1999

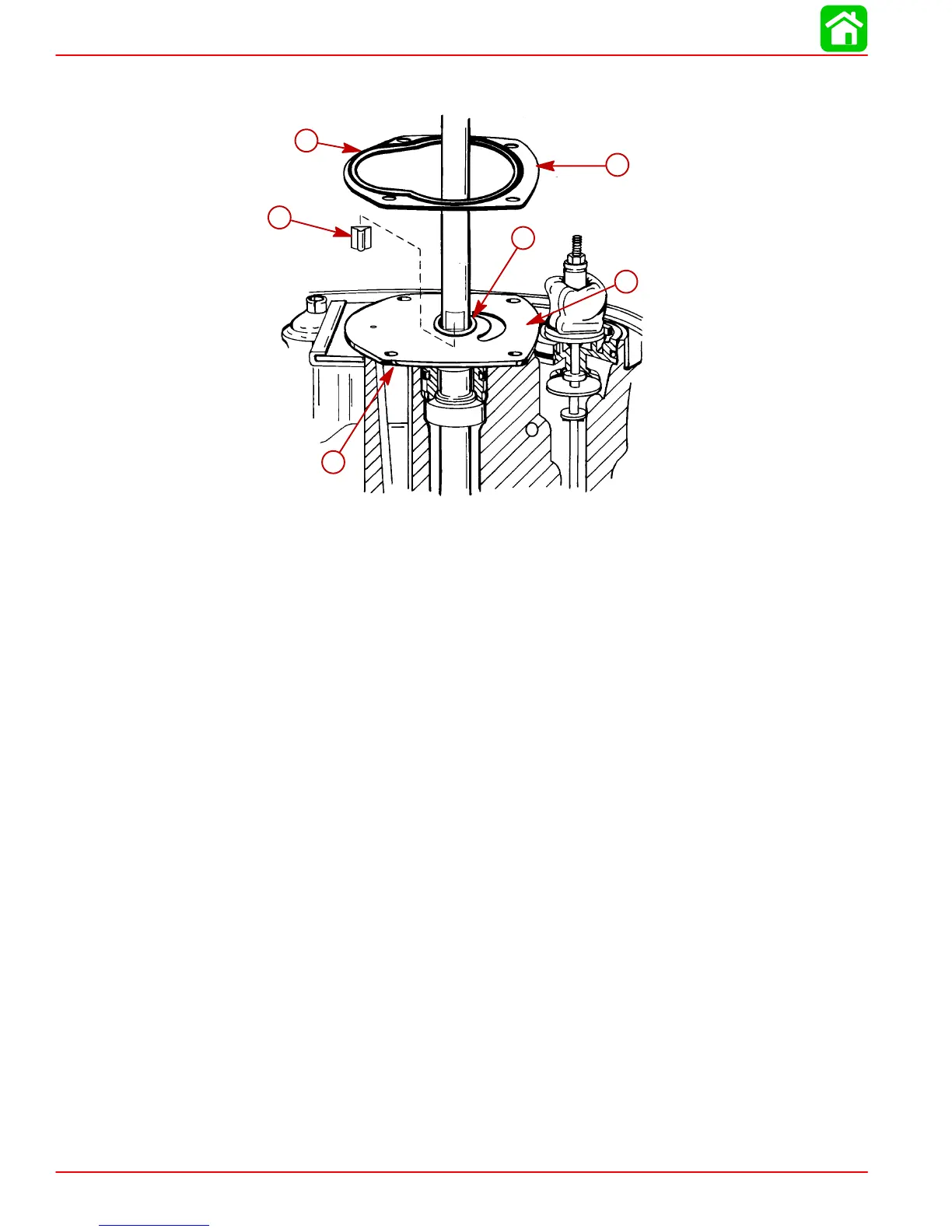

3. Install base gasket, face plate, pump cover gasket (NEOPRENE STRIP FACES UP),
nylon washer and impeller key.
52868
a
b
c
e
f
d
a-Base Gasket
b-Base Plate
c-Cover Gasket
d-Neoprene Strip
e-Nylon Washer
f-Key
IMPORTANT: If impeller being installed has been previously used and vanes have tak-
en a “set,” DO NOT INSTALL THE IMPELLER WITH THE VANES REVERSED FROM
THEIR PREVIOUS “SET” AS VANE BREAKAGE WILL OCCUR SHORTLY AFTER UNIT
IS RETURNED TO SERVICE.
