BIGFOOT GEAR HOUSING
Page 6B-54 90-828631R3 MARCH 1999

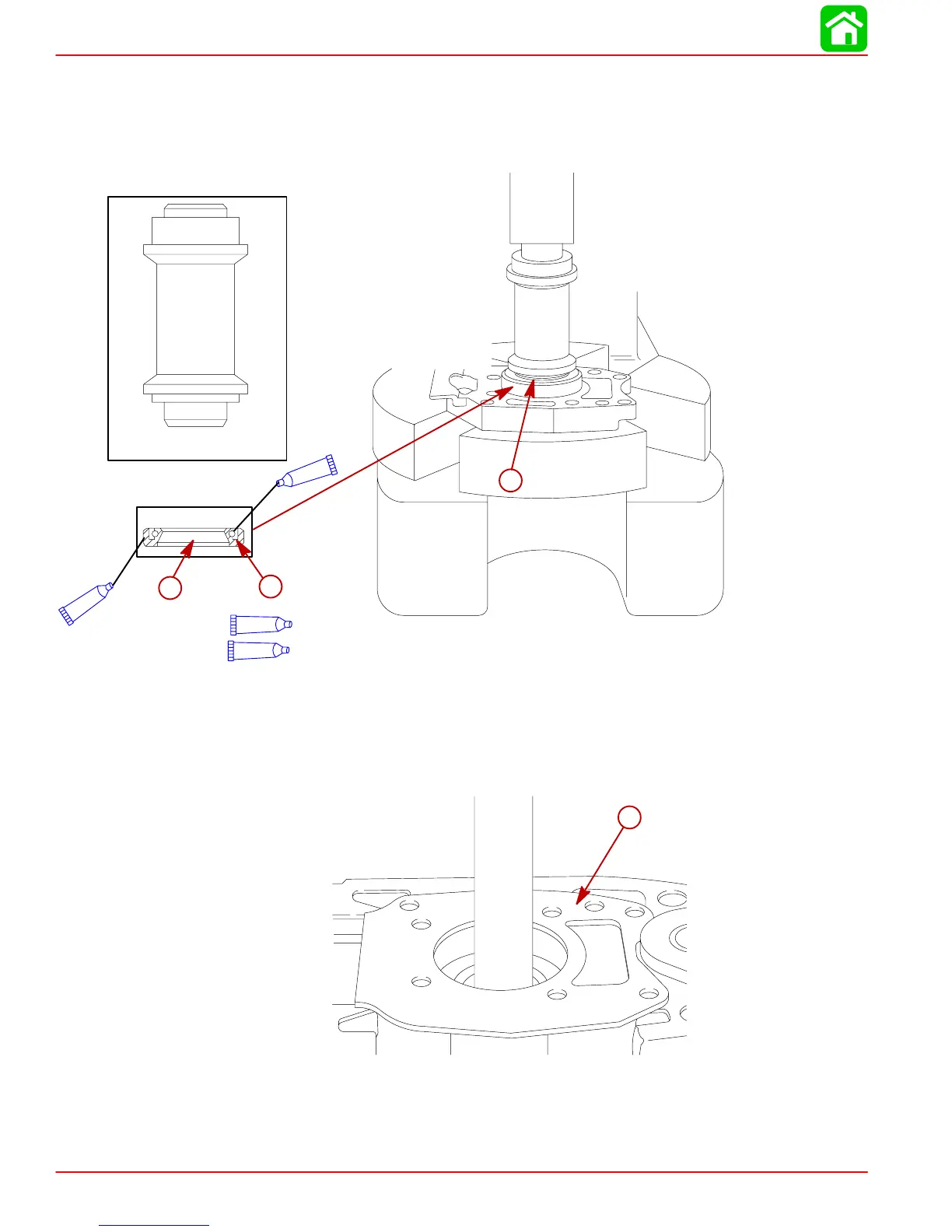

3. Place lower seal on shorter shoulder side of Oil Seal Driver (91-13949) with seal lip to-
ward shoulder.
4. Apply Loctite 271 on O.D. of seal; press seal into water pump base until tool bottoms.
5. Lubricate lip of each seal with Quicksilver 2-4-C w/Teflon (92-825407A12).
51553
c
91-13949
7
Loctite “271” (92-809819)
95
2-4-C w/Teflon (92-850736A1)
7
95
a
b
a-Seal - Lip Faces Toward Gear Case
b-Spring - Faces Toward Gear Case
c-Oil Seal Driver (91-13949)
6. Install gasket.
19218
a
a-Gasket
To Next Page
