BIGFOOT GEAR HOUSING
90-828631R3 MARCH 1999 Page 6B-55

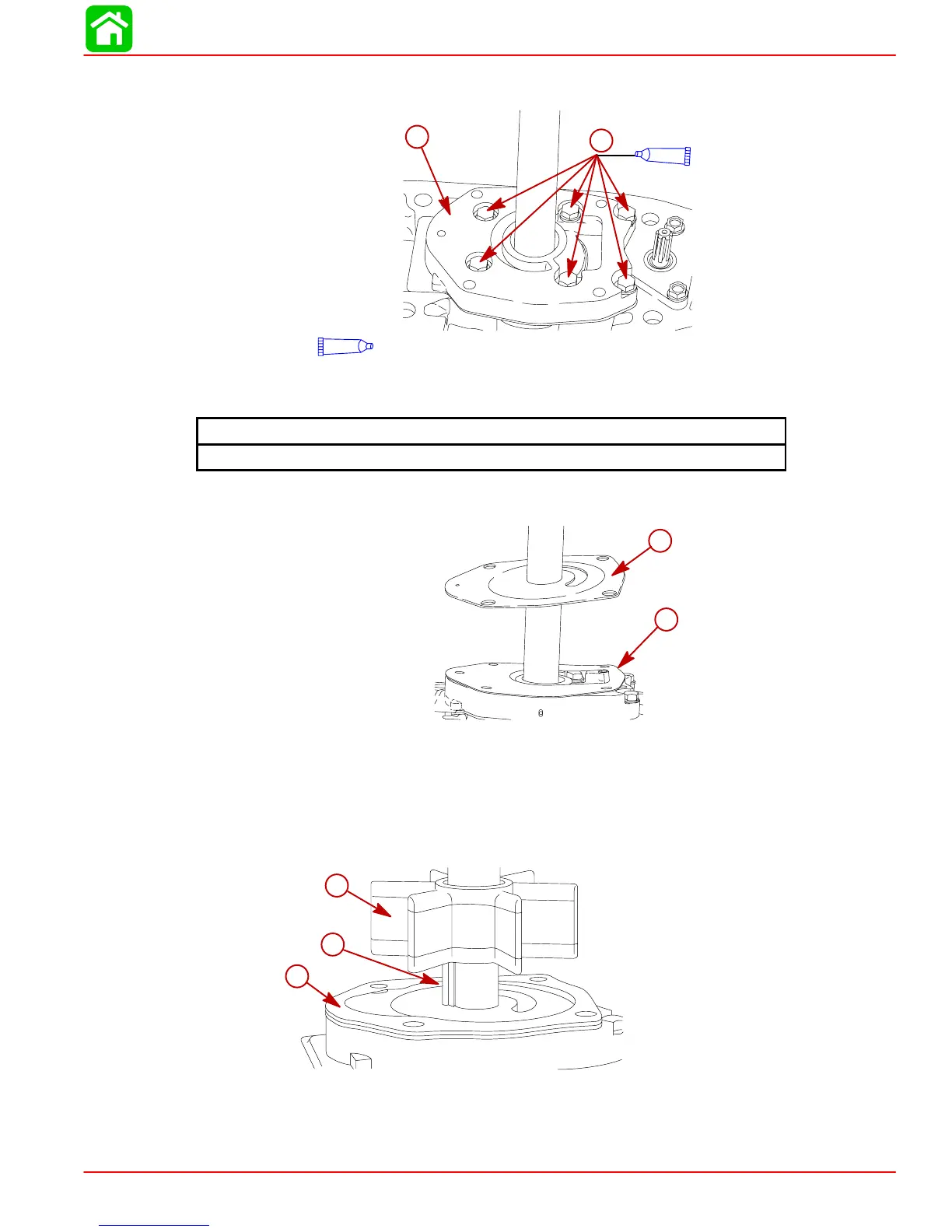

7. Install components as shown. Apply Loctite 271 on bottom half of threads and torque
to specified torque.
19217
a
b
7 Loctite “271” (92-809819)
7
a-Water Pump Base
b-Bolts and Washers
Bolt Torque
60 lb-in. (6.8 Nm)
8. Install gasket and plate.
19219
a
b
a-Gasket
b-Plate
IMPORTANT: If the old impeller will be re-used, impeller must be installed in original
(clockwise) direction of rotation.
9. Install gasket, drive key and impeller.
19220
a
b
c
a-Gasket
b-Drive Key
c-Impeller
To Next Page
