SERVICE MANUAL NUMBER 22
STERNDRIVE (MCM) MODELS
Page 2A-16 90-860074--1 FEBRUARY 2002

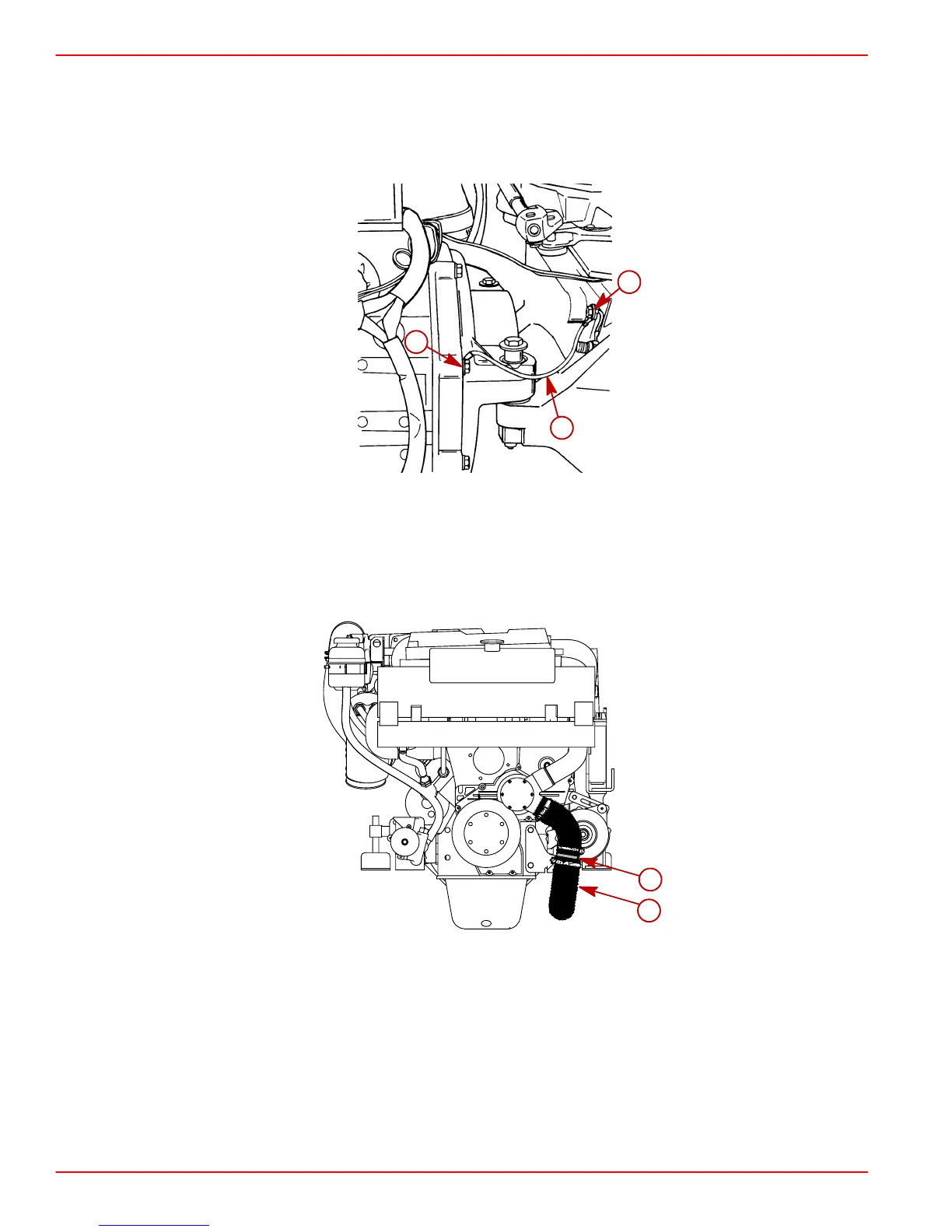

3. Connect continuity circuit wire from engine to transom assembly. Tighten screw
securely.
IMPORTANT: Do not attach any accessory ground (–) wires to transom plate ground
point.
73567
a
b
c
a-Flywheel Housing Screw
b-Continuity Circuit Wire
c-Inner Transom Plate Grounding Screw
4. Connect any grounding wires and accessories that were connected to engine.
5. Connect seawater inlet hose to engine water inlet fitting. Tighten hose clamp securely.
75299
a
b
Typical
a-Seawater Inlet Hose
b-Connector Fitting
