STARTING SYSTEM

SERVICE MANUAL NUMBER 22

90-860074--1 FEBRUARY 2002 Page 4A-9

Installation

Solenoid Switch

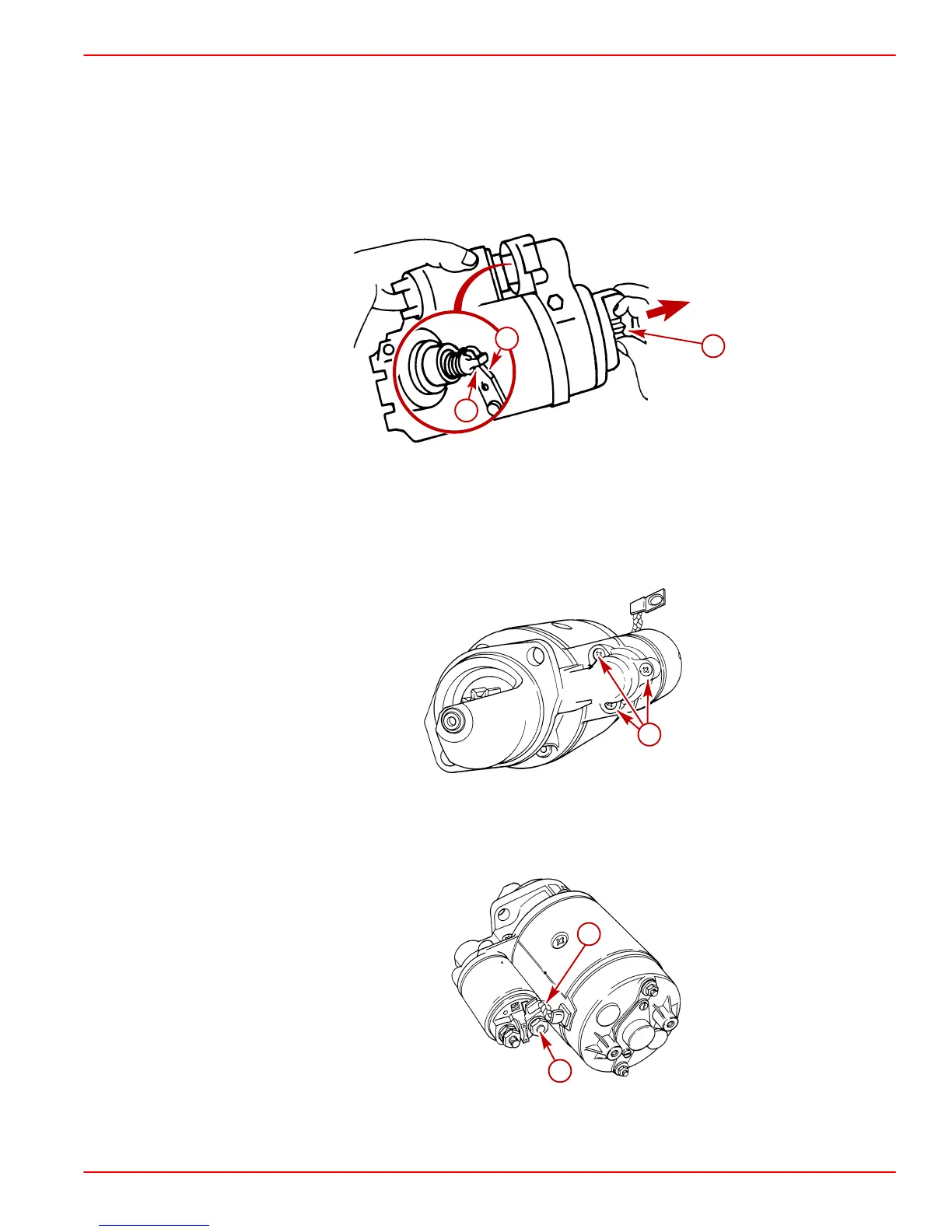

1. Apply a light coat 2-4-C Marine Lubricant with Teflon to the shift lever and sliding portion

of the pinion.

2. Slide solenoid plunger onto shift lever.

70833

a-Solenoid Plunger

b-Shift Lever

c-Drive Gear

3. Install solenoid screws and tighten securely.

70812

a-Solenoid Screws

4. Install nut on the field wire terminal and tighten securely.

70811

a-Field Coil Wire

b-Hex Nut
