FUEL DELIVERY PUMP AND FUEL FILTER
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 5B-11
Installation

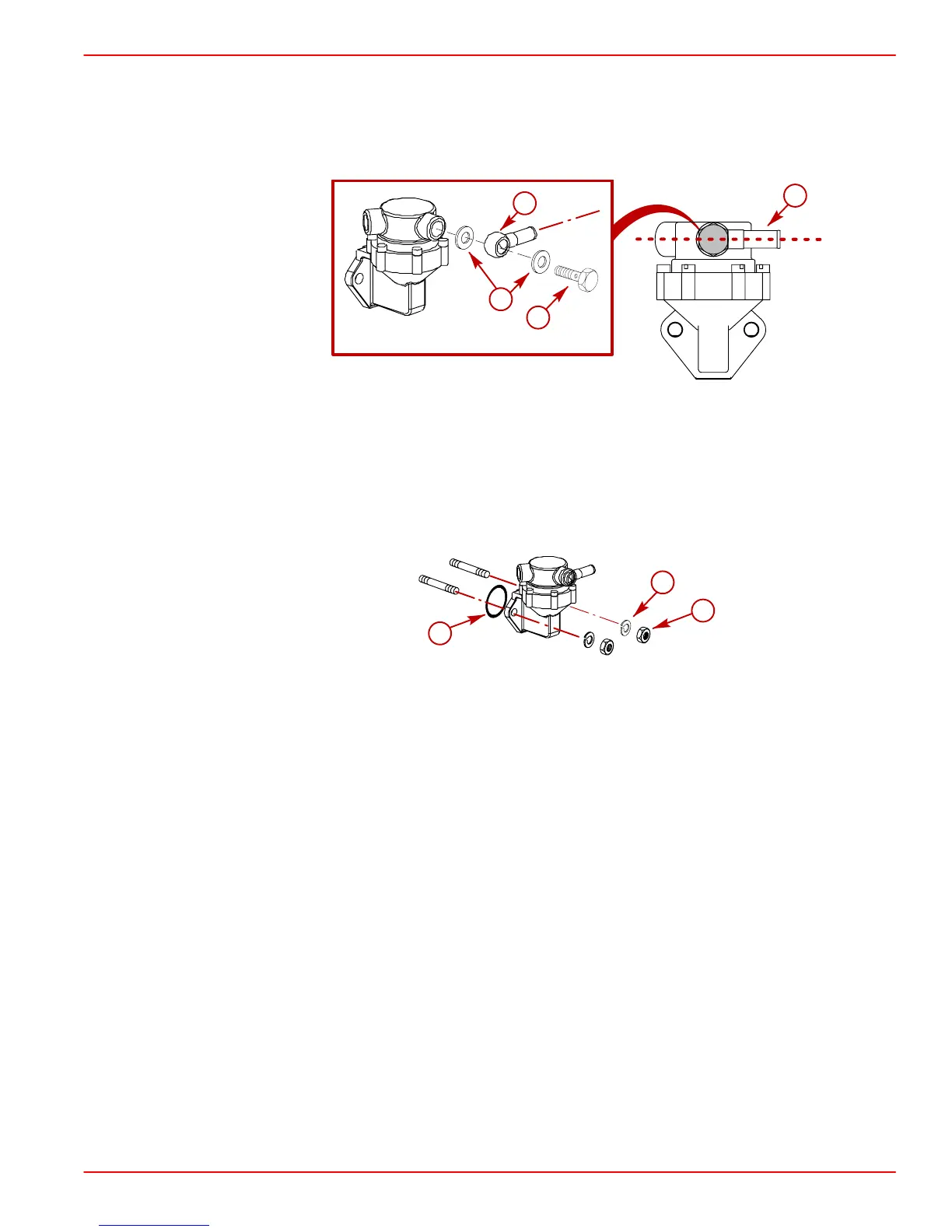

1. Using 2 new sealing washers on hollow bolt, attach fuel inlet fitting to fuel pump as
shown.
2. Tighten hollow bolt securely.
75298
a
c
b
c
a-Hollow Bolt
b-Sealing Washer
c-Fuel Inlet Fitting
3. Using a new O-ring, install the fuel pump on the engine block. Temporarily hand tighten
the mounting nuts.
a
b
c
75298
a-O-ring
b-Lockwasher
c-Nut
