ENGINE MECHANICAL
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 3A-37

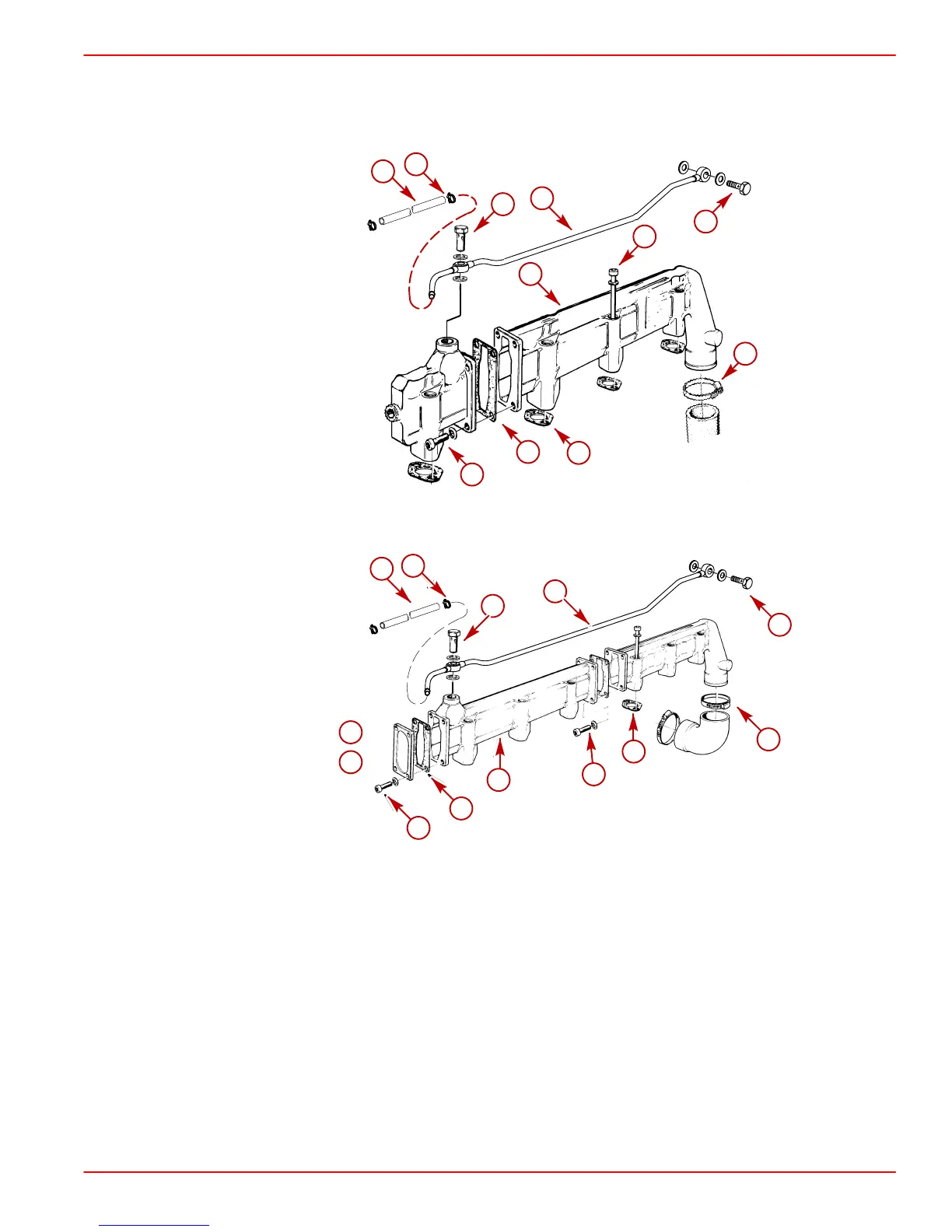

Water Manifold
Exploded Views
75440
c
b
e
a
b
c
d
f
g
h
i
D2.8L D-Tronic
75108
b
d
e
a
d
e
f
h
i
b
c
g
c
D4.2L D-Tronic
a-Hose Clamp
b-Banjo Bolt and Sealing Washer
c-Screws with Washers
d-Water Manifold
e-Vent Pipe (To Turbocharger Fitting)
f-Vent Hose (To Heat Exchanger Fitting)
g-Gasket, End Cover or Manifold Pieces
h-Cylinder Head Gaskets
i-Hose and Clamp (To Exhaust Manifold End Cover)
