ENGINE MECHANICAL SERVICE MANUAL NUMBER 22
Page 3A-136 90-860074--1 FEBRUARY 2002
Cylinder Liners
Removal
1. Remove components as needed, including pistons.
2. Remove plate from Cylinder Liner Puller 91-801333502.

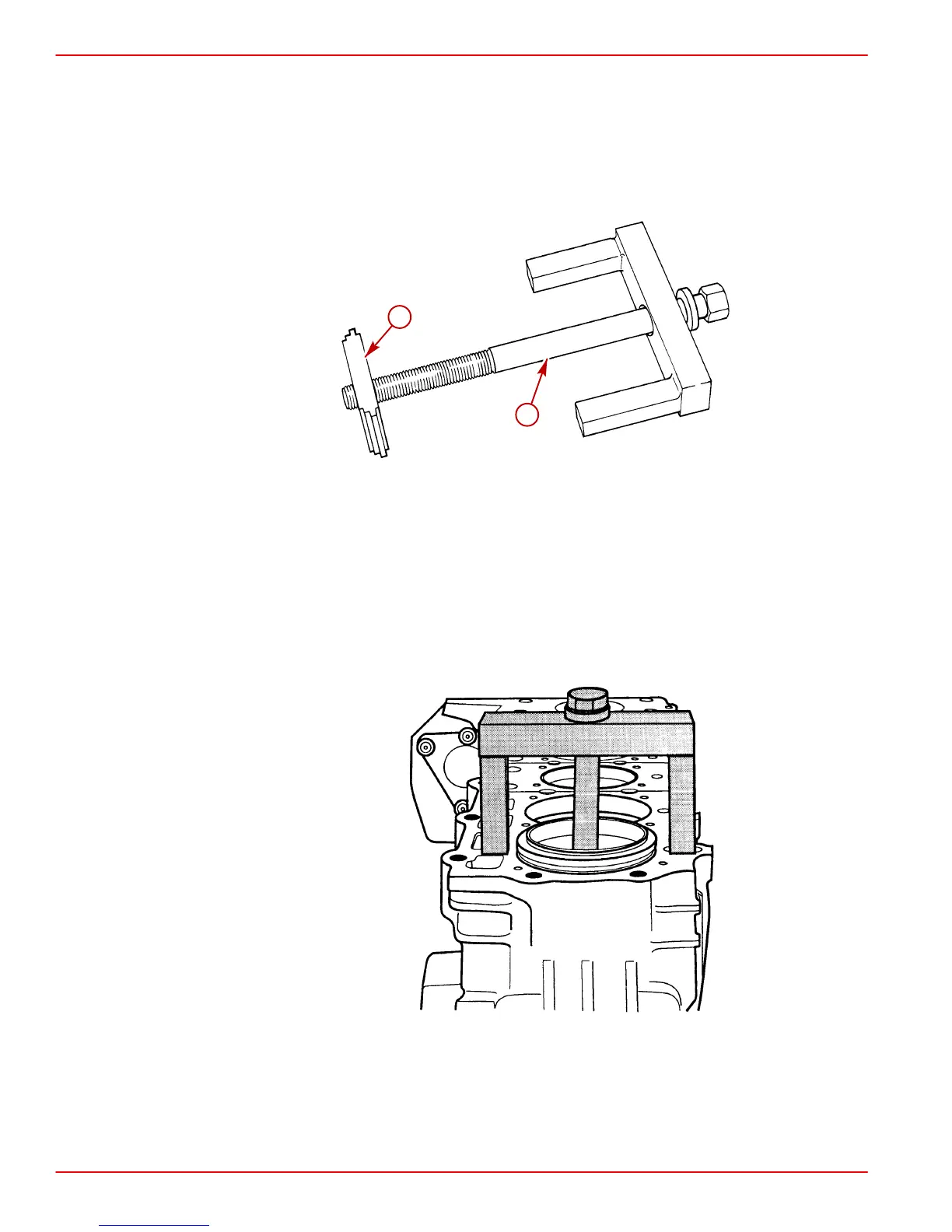

70412
a
b
a-Cylinder Liner Puller Tool
b-Plate
IMPORTANT: Mark liners in a suitable fashion as to the cylinder number (to avoid
mismatching to pistons upon reassembly) and orientation in block (reference to
prechamber bore of head).
3. Install puller tool into cylinder and attach plate to tool at bottom of liner. Remove liner(s)
as shown. Note location of shim between liner and crankcase bore relief. Also, note
O-rings on liner lower part.
70413
