INJECTION PUMP SERVICE MANUAL NUMBER 22
Page 5D-28 90-860074--1 FEBRUARY 2002
21. Install throttle cables. Refer to SECTION 2A - Throttle Cable Installation and
Adjustment.
IMPORTANT: When installing throttle cables, ensure that cables are routed in such
a way as to avoid sharp bends and/or contact with moving parts. Do NOT fasten any
items to throttle cables.
22. Remove graduated disc and adaptor ring, crankshaft tool and wire pointer from front of
engine. Install the three balancer screws previously removed. Torque screws to 50 Nm
(37 lb-ft).
23. Refer to Section 4B - MAINTENANCE, and install alternator belt, power steering belt,
if equipped, and optional belts, if equipped.
Starting Engine - After Fuel Injection Pump Installation and
Timing
Generally purging air from the system is only needed after draining and replacing the water
separating fuel filter or purging a new filter of air. In most cases the design of the EDI System
will prevent needing to purge the Fuel Injection Pump itself.
After installing the fuel injection pump, checking or setting pump timing, it will be necessary
to fill the fuel injection system.
NOTE: Place a suitable container under fuel filter to catch excess fuel.
1. Loosen bleed screw on fuel filter bracket.
2. Move plunger on hand pump/primer up and down repeatedly, until an air free stream of
fuel flows from bleed screw. Filter is full when this occurs.
3. Tighten bleed screw.

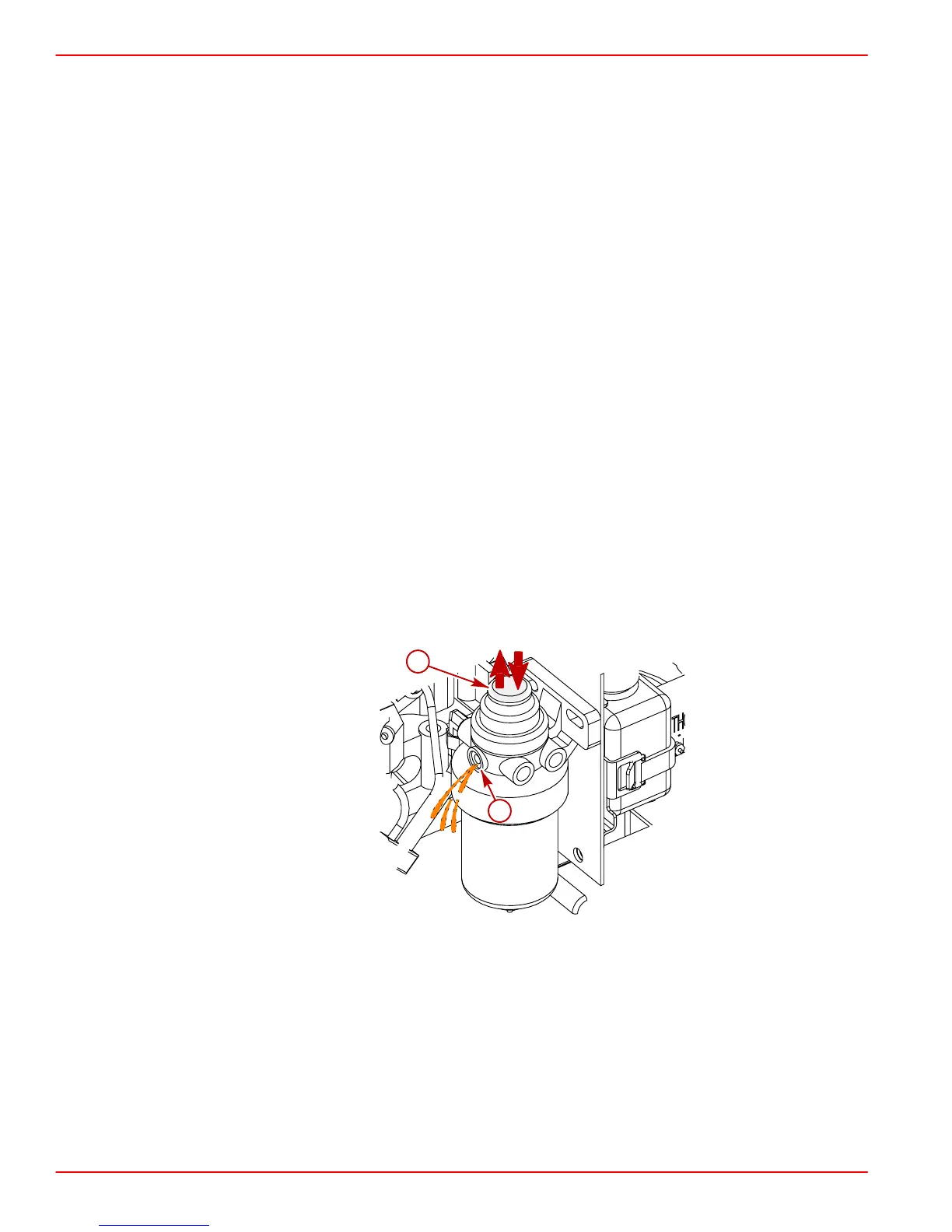

74726
a
b
a-Plunger
b-Bleed Screw
