CHARGING SYSTEM
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 4B-17
Removal
Alternator
1. Disconnect battery cables from battery.
2. Disconnect wiring harness from alternator.
3. Loosen alternator support bracket screw.
4. Remove the drive belt.
5. Remove the alternator brace attaching bolt and washer.
6. Remove the alternator mounting bolt, washer and nut.

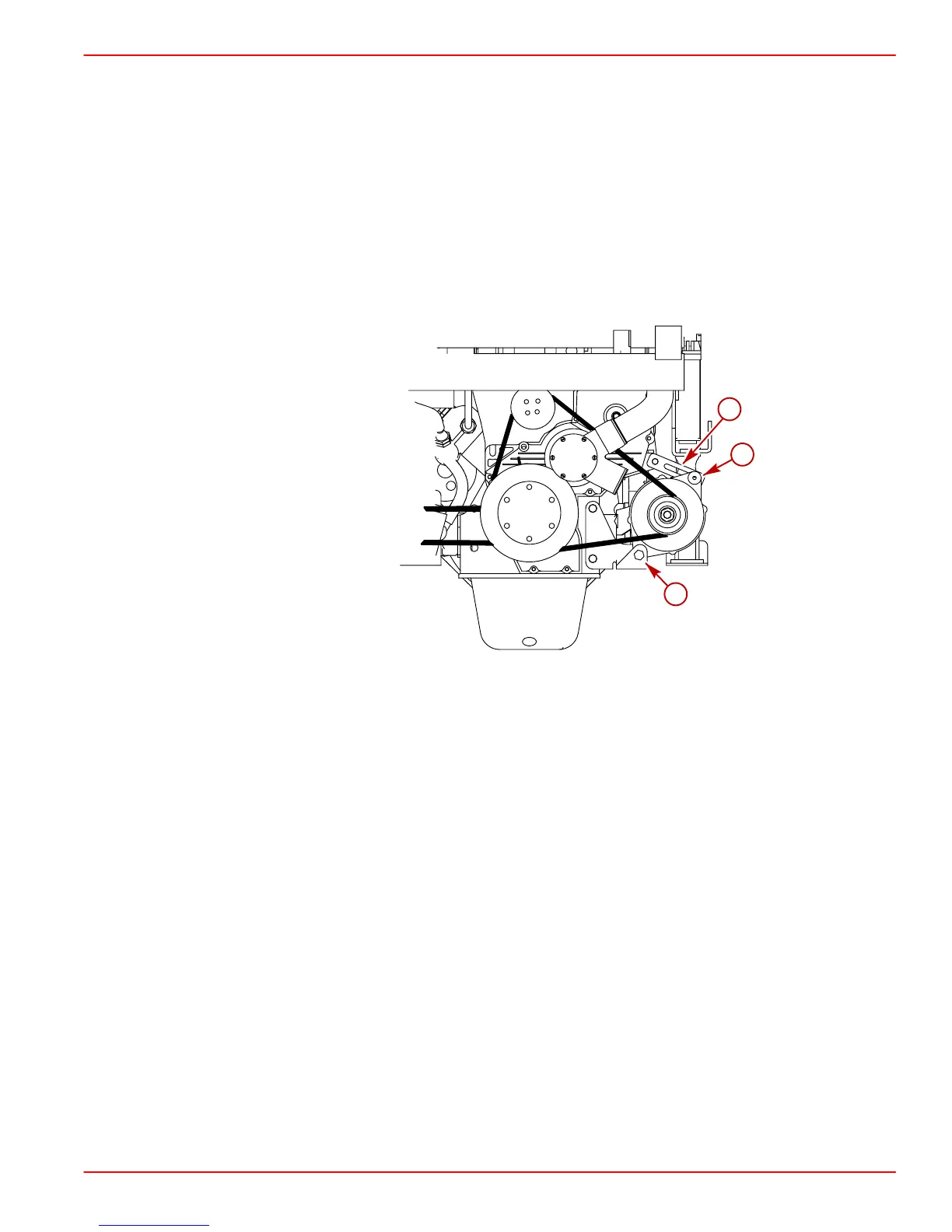

78310
a
b
c
a-Alternator Brace
b-Brace Bolt
c-Alternator Mounting Bolt
7. Remove the alternator.
Alternator Bracket
1. Remove the alternator.
2. Remove the bracket mounting bolts. Note the position of the spacer, or of the upper and
lower spacers.
3. Remove the bracket.
