PUMP AND RELATED COMPONENTS

SERVICE MANUAL NUMBER 22

90-860074--1 FEBRUARY 2002 Page 9A-3

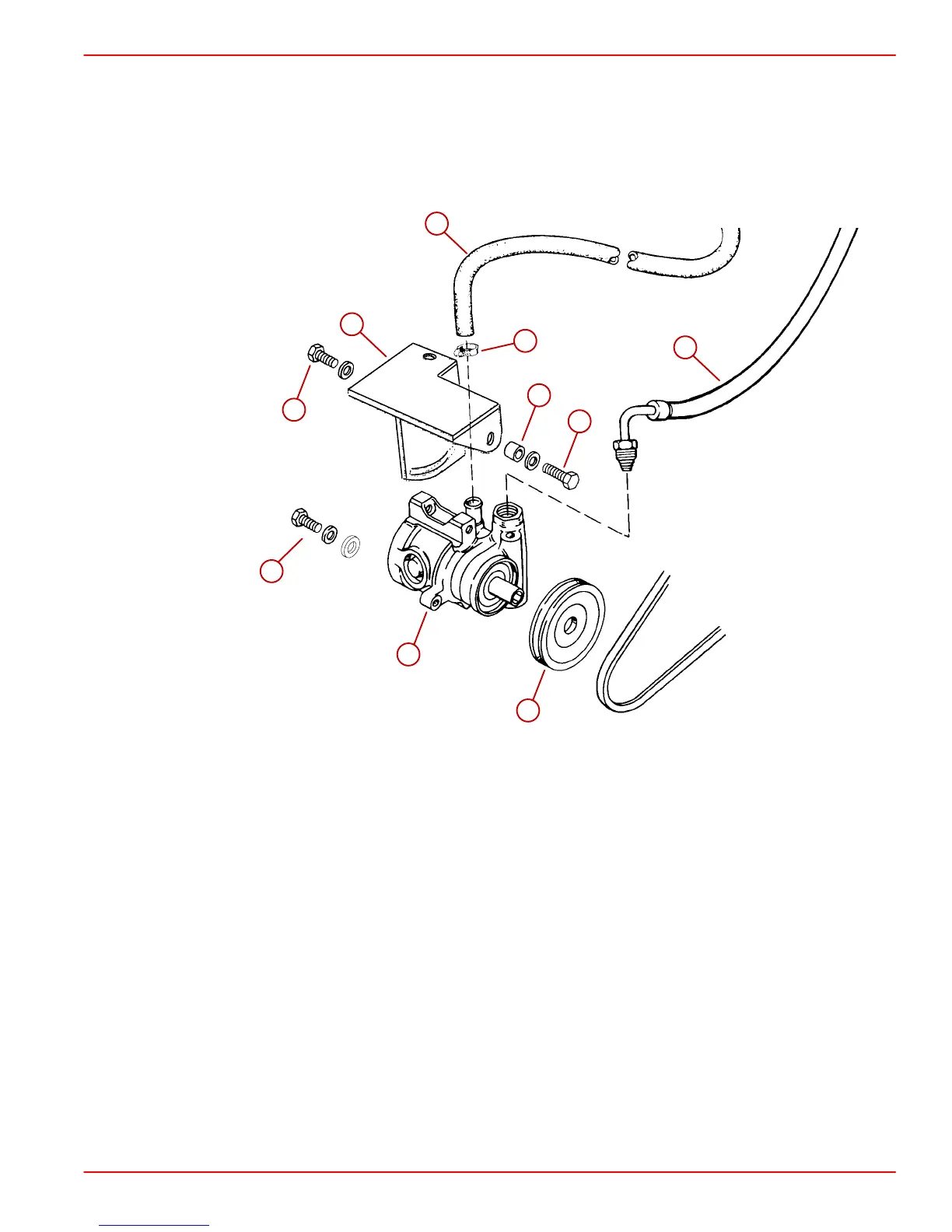

Exploded Views

Power Steering Pump

71035

1

2

3

4

6

4

9

7

8

5

1-Pump

2-Pulley

3-Tensioning Bolt, Lockwasher And Flat Washer

4-Mounting Bolt

5-Bushing

6-Fluid Pressure Hose

7-Fluid Reservoir Hose

8-Hose Clamp

9-Bracket
