MAINTENANCE
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 1B-57
Inspection
WARNING
Avoid possible serious injury. Ensure engine is shut off and ignition key is removed
before inspecting belts.

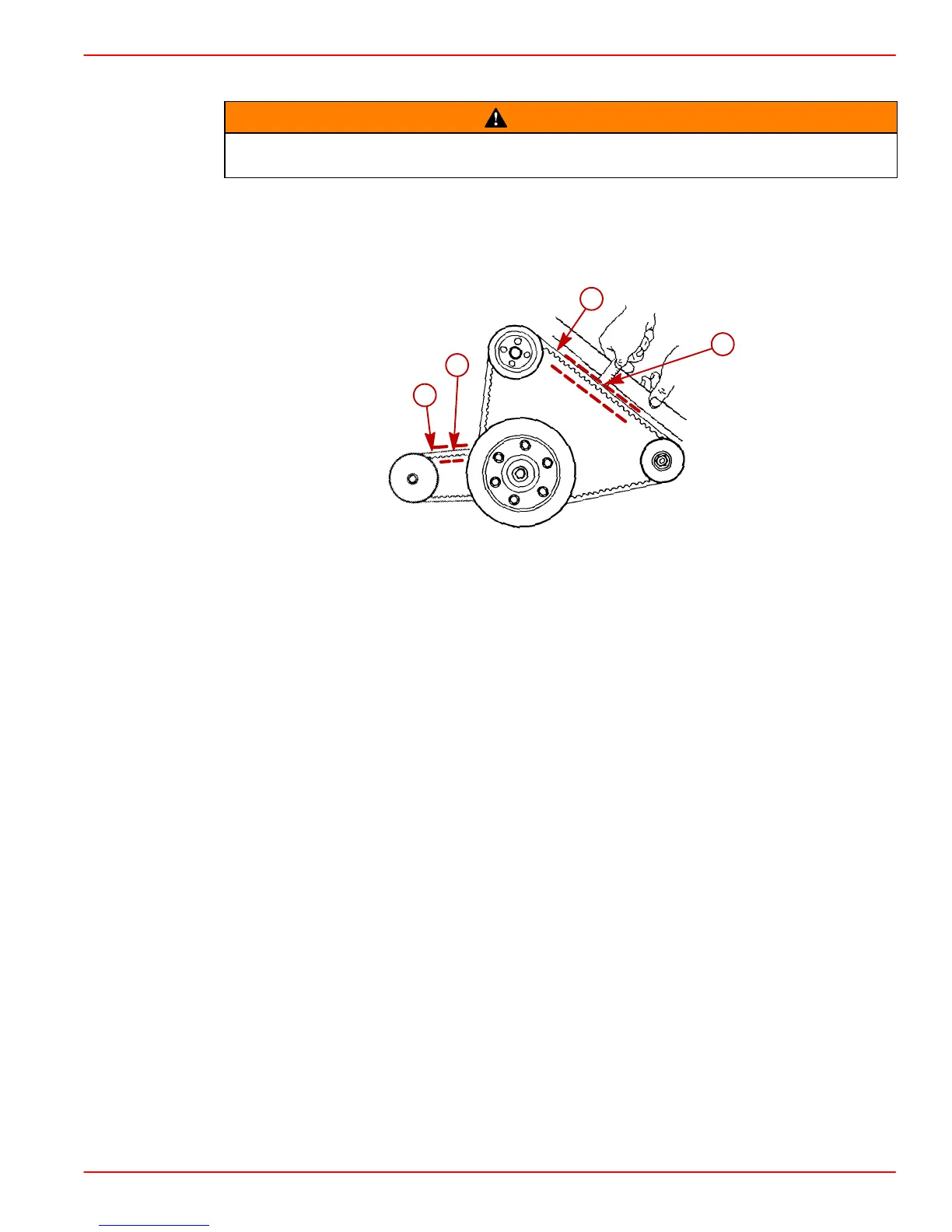

1. Visually inspect all drive belts for cracks, glazing, fraying or separation.
2. Check drive belts for proper tension by pressing midpoint between the pulleys on the
longest belt span. Belts must not deflect more than 5 mm (3/16 in.).
71588
73190
a
b
a
b
71588
Typical
a-Drive Belts
b-Deflection Measurement
Engine Water Circulating Pump Belt
Refer to Alternator Belt instructions.
