ENGINE MECHANICAL

SERVICE MANUAL NUMBER 22

90-860074--1 FEBRUARY 2002 Page 3A-29

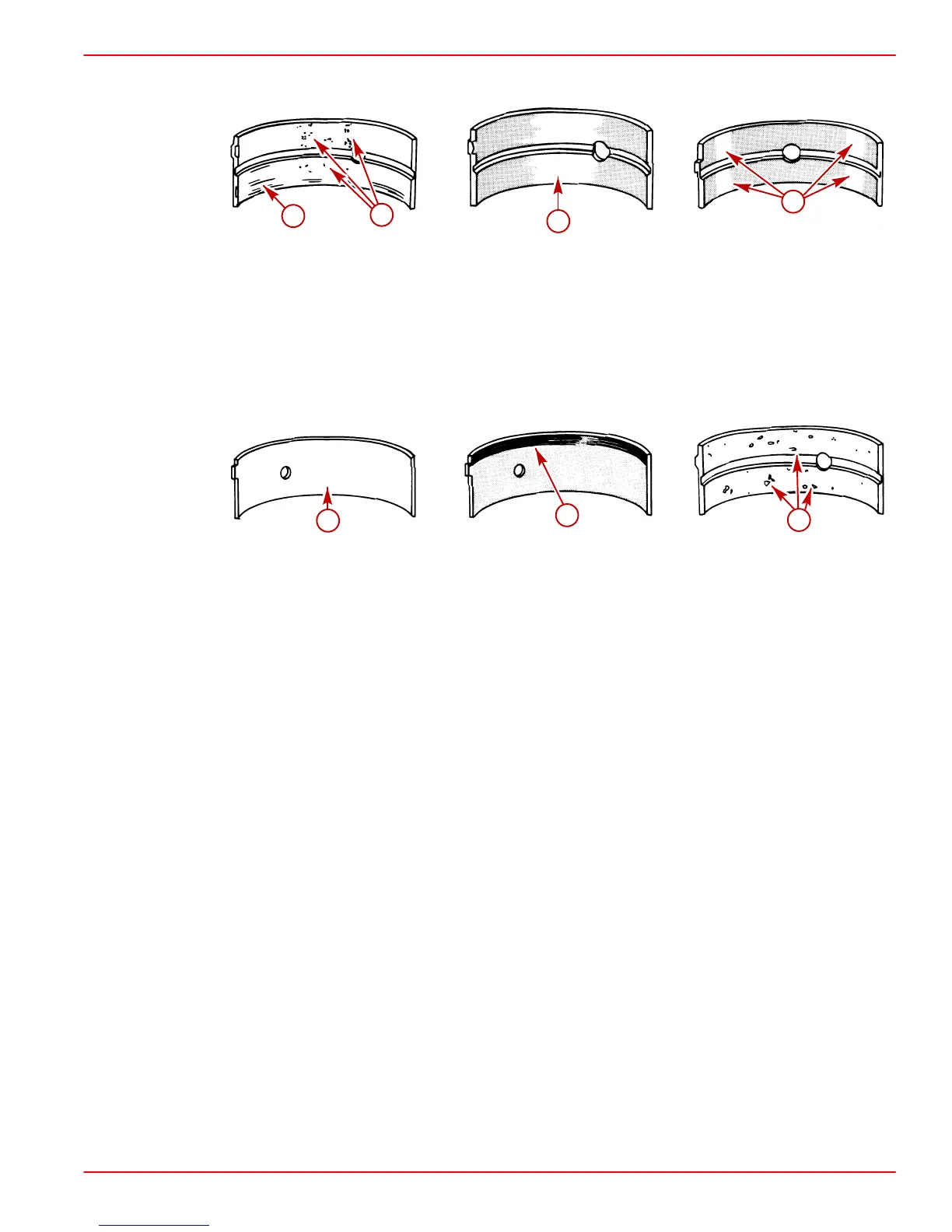

Examples of Bearing Failures

70436

Scratched By Dirt Lack Of Oil Improper Seating

a-Scratches

b-Dirt Imbedded Into Bearing Material

c-Overlay Wiped Out

d-Bright (Polished) Sections

70436

Tapered Journal Radius Ride Fatigue Failure

a-Overlay Gone From Entire Surface

b-Radius Ride

c-Craters Or Pockets
