PUMP AND RELATED COMPONENTS
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 9A-5
Power Steering Pump
Removal
CAUTION
Disconnect Battery cables at battery to prevent engine rotation and injury while
working on pump.
1. Remove vacuum pump belt, if equipped.
2. Remove and retain mounting and tensioning bolts and hardware.

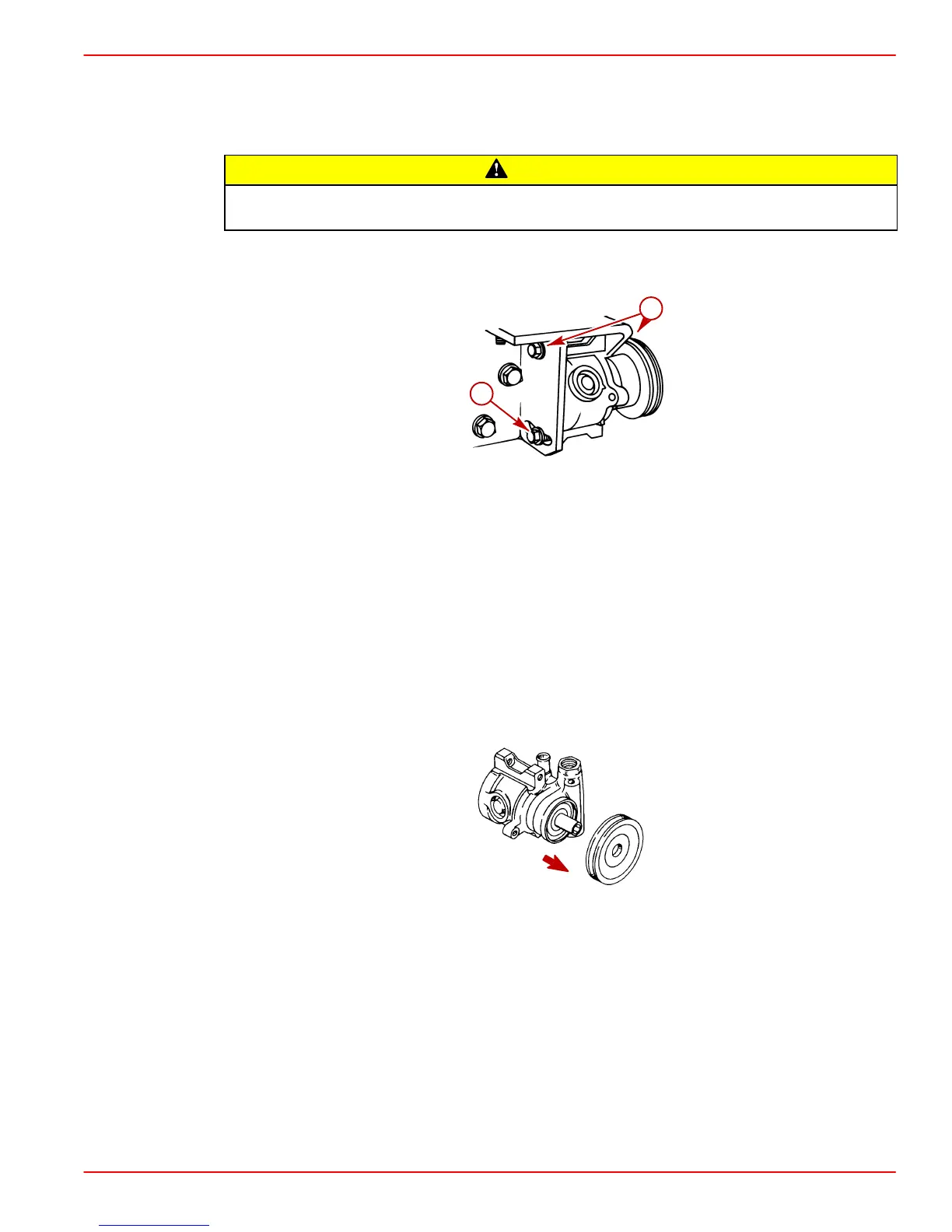

70113
a
b
Typical
a-Mounting Bolts (One With A Bushing Not Shown In This View)
b-Tensioning Bolt, Lockwasher And Flat Washer
3. Lower pump down to gain access to hose connections. Remove hoses and adaptor as
shown. Using clean, suitable plugs, quickly plug hoses to limit loss of fluid.
NOTE: If possible lift pump above power steering reservoir and then remove hoses to mini-
mize fluid loss.
4. Drain power steering fluid from pump into a suitable container. Do NOT reuse fluid.
5. Using a suitable puller remove pulley from pump shaft. Retain pulley for installation on
new pump.
71035
Typical
6. Drain fluid from power steering reservoir into a suitable container. Do NOT reuse fluid.
Dispose of fluid properly.
