ENGINE MECHANICAL SERVICE MANUAL NUMBER 22

Page 3A-36 90-860074--1 FEBRUARY 2002

3. Install engine cover support bar. Torque screws to 27.5 Nm (20 lb-ft).

75374

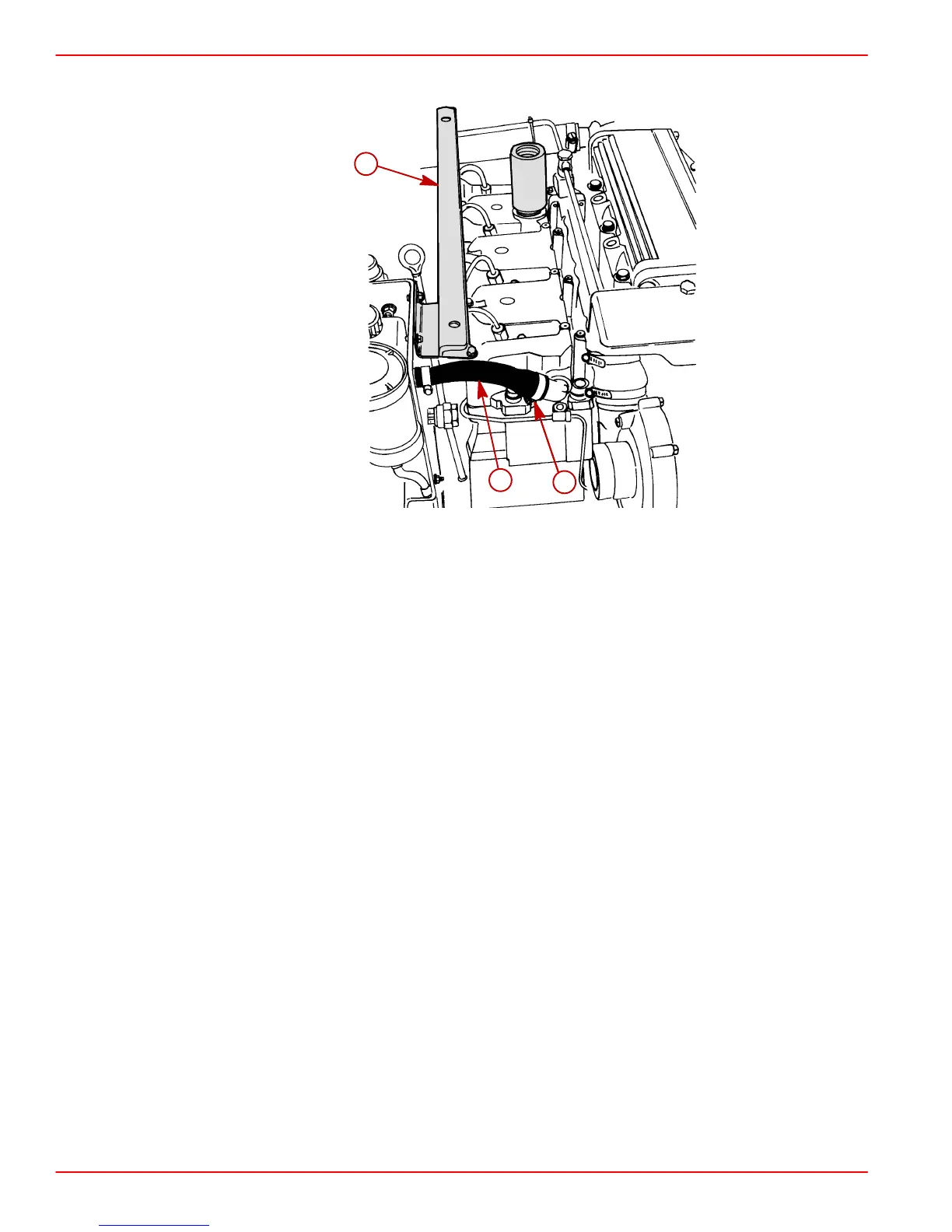

Typical

a-Vent Hose

b-Clamp

c-Engine Cover Support Bar

4. Install engine cover and oil fill cap.
