FUEL DELIVERY PUMP AND FUEL FILTER SERVICE MANUAL NUMBER 22

Page 5B-12 90-860074--1 FEBRUARY 2002

4. Using 2 new sealing washers on hollow bolt, attach fuel outlet pipe to fuel pump.

5. Torque fuel pump mounting nuts securely.

6. Tighten fuel outlet pipe hollow bolt securely.

7. Connect fuel supply hose. Tighten hose clamp securely.

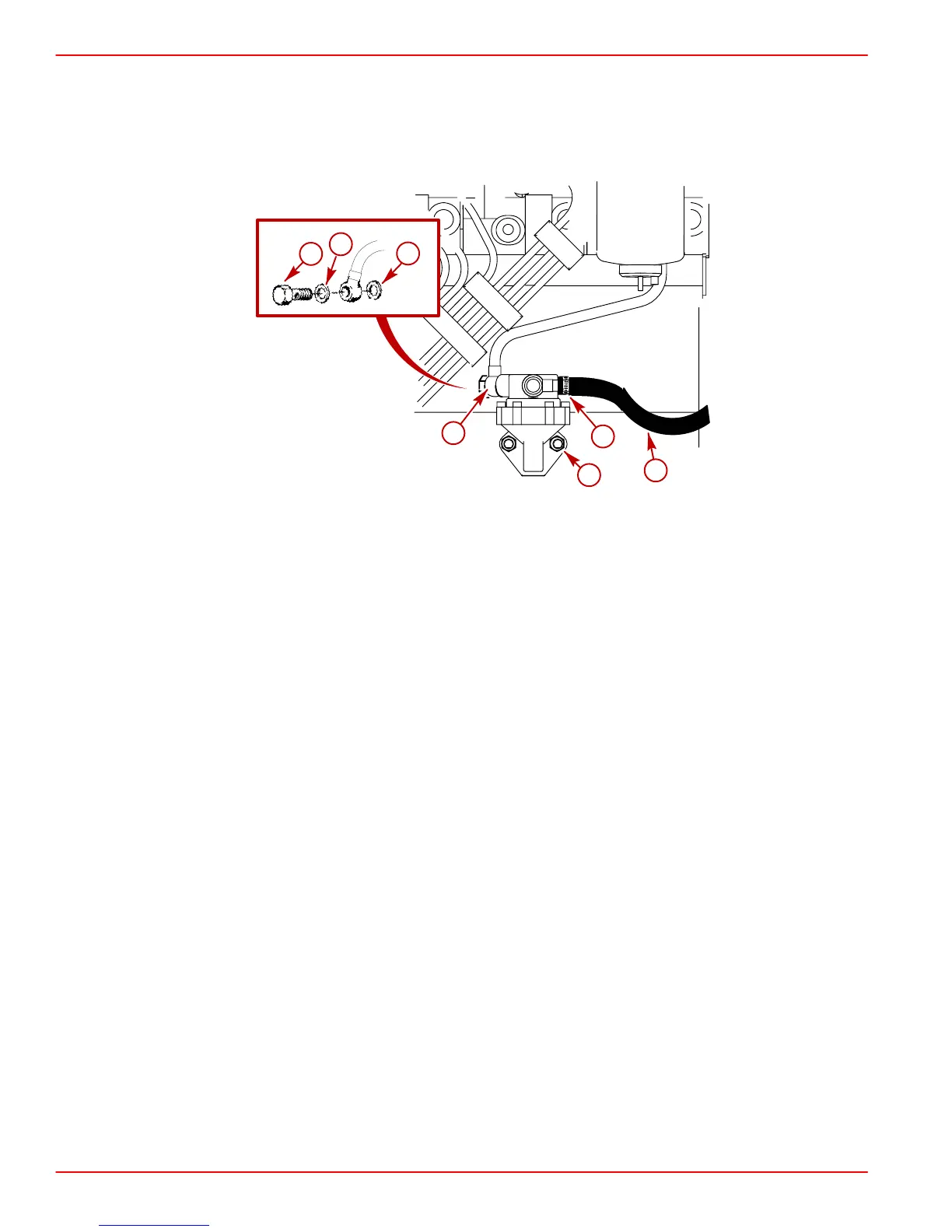

75298

a-Hollow Bolt

b-Sealing Washer

c-Fuel Outlet Pipe

d-Mounting Nut

e-Clamp

f-Fuel Supply Hose
