STARTING SYSTEM SERVICE MANUAL NUMBER 22

Page 4A-8 90-860074--1 FEBRUARY 2002

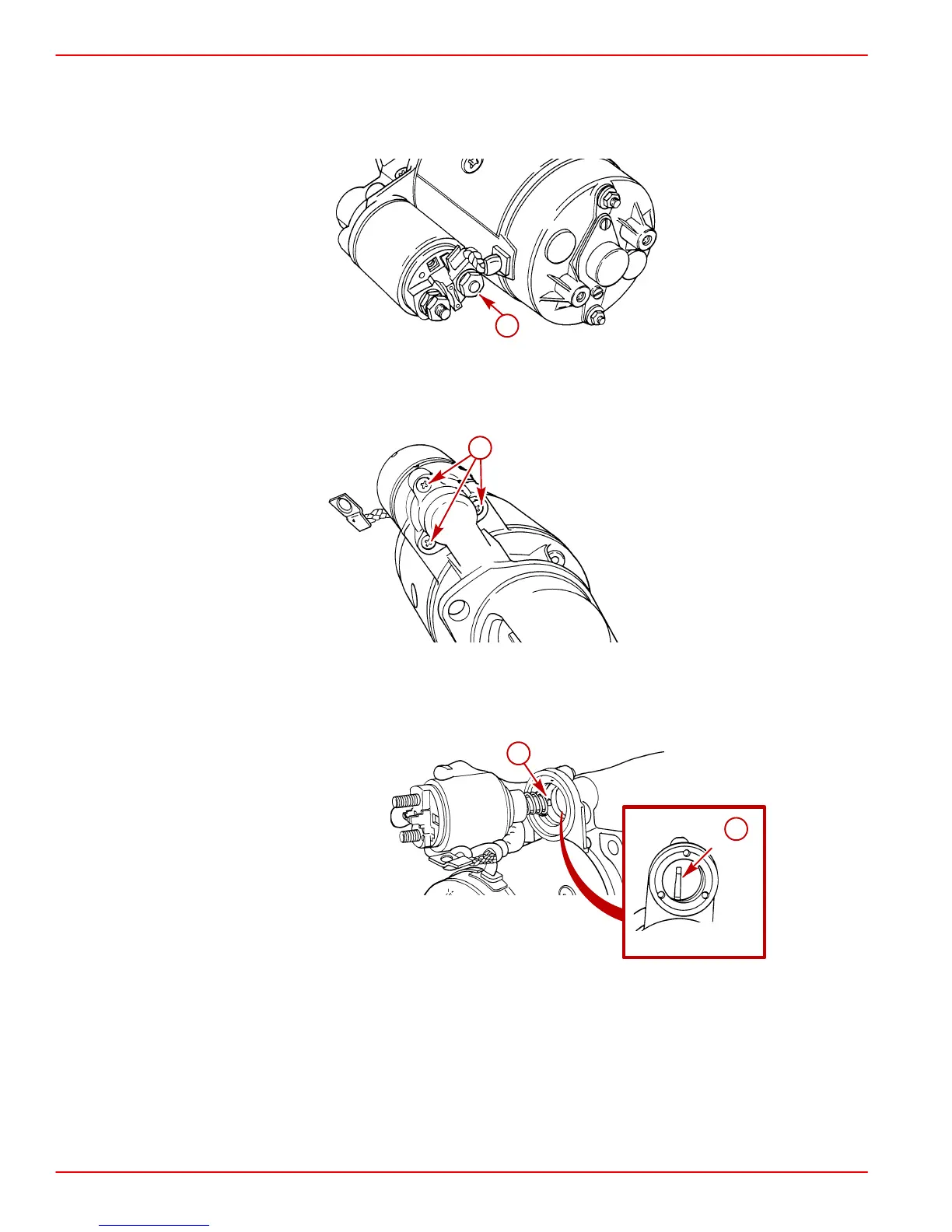

Solenoid Switch

1. Remove starter motor.

2. Remove nut from the field wire on the solenoid.

70811

a-Field Wire Nut

3. Remove screws retaining solenoid.

70812

a-Screws

4. Slide solenoid plunger off shift lever.

70813

70814

a-Solenoid Plunger

b-Shift Lever

5. Remove solenoid from starter assembly.
