4. Torque the side bolt set as indicated.
a. First pass:
Engine
Sequence Torque
D2.8L Side Bolts 11-12-13-14-15-16-17-18 30 Nm (22 lb-ft)
D4.2L Side Bolts 15-16-17-18-19-20-21-22-23-24-25-26 30 Nm (22 lb-ft)
b. Second pass:
Engine
Sequence Torque Angle
D2.8L Side Bolts 11-12-13-14-15-16-17-18 + 85 Degrees
D4.2L Side Bolts 15-16-17-18-19-20-21-22-23-24-25-26 + 85 Degrees
11 12 13 14
15 16 17 18
77114
a
15
16
17 18
19
20
21 22 23 24 25 26
77113
b

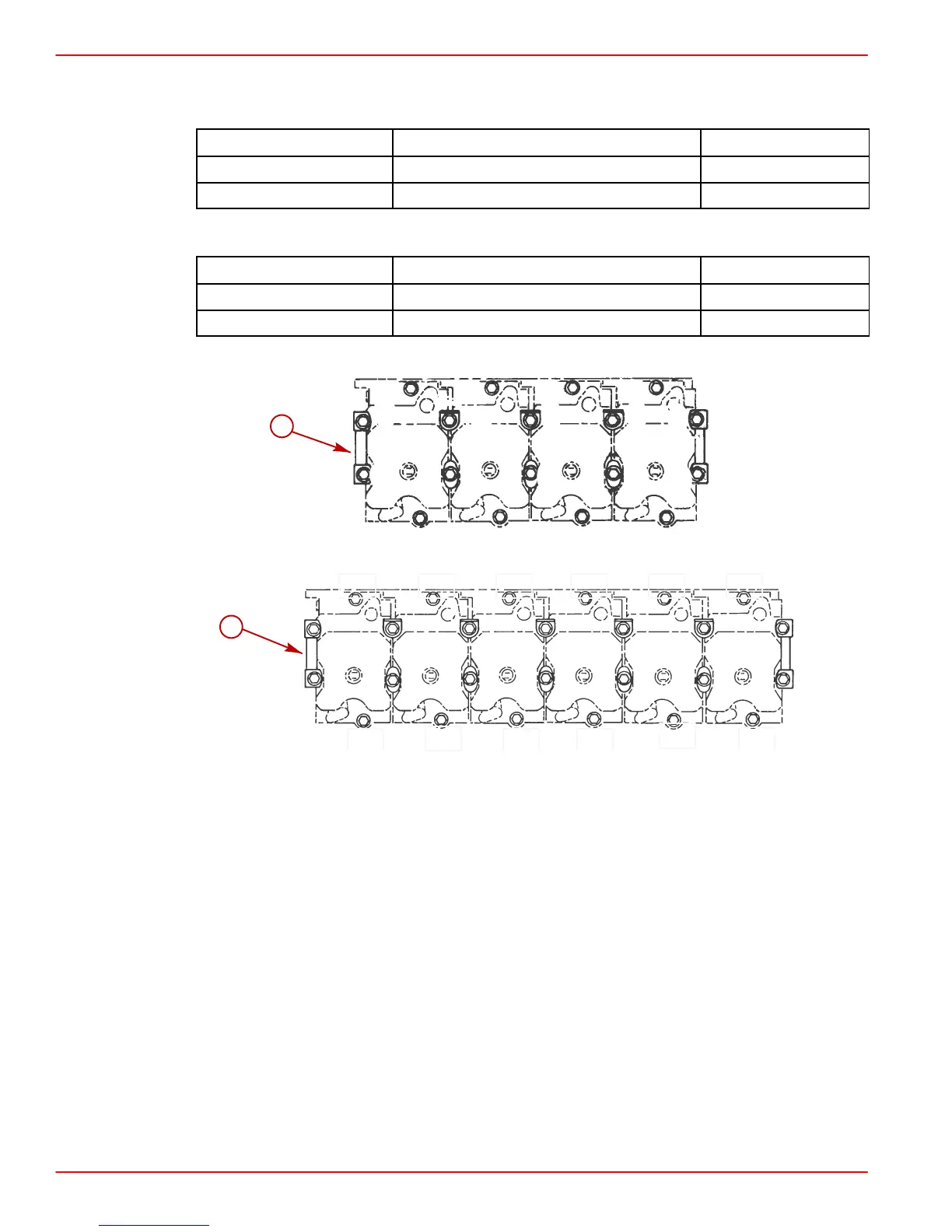

Side Bolt Torque Sequence Diagram
a-4 Cylinder Engine
b-6 Cylinder Engine
