ENGINE MECHANICAL SERVICE MANUAL NUMBER 22

Page 3A-24 90-860074--1 FEBRUARY 2002

4. Without loosening, torque each side bolt as indicated.

Engine

Sequence Torque

D2.8L Side Bolts 11-12-13-14-15-16-17-18 90 Nm (66 lb-ft)

D4.2L Side Bolts 15-16-17-18-19-20-21-22-23-24-25-26 90 Nm (66 lb-ft)

17 18

21 22 23 24 25 26

77113

11 12 13 14

15 16 17 18

77114

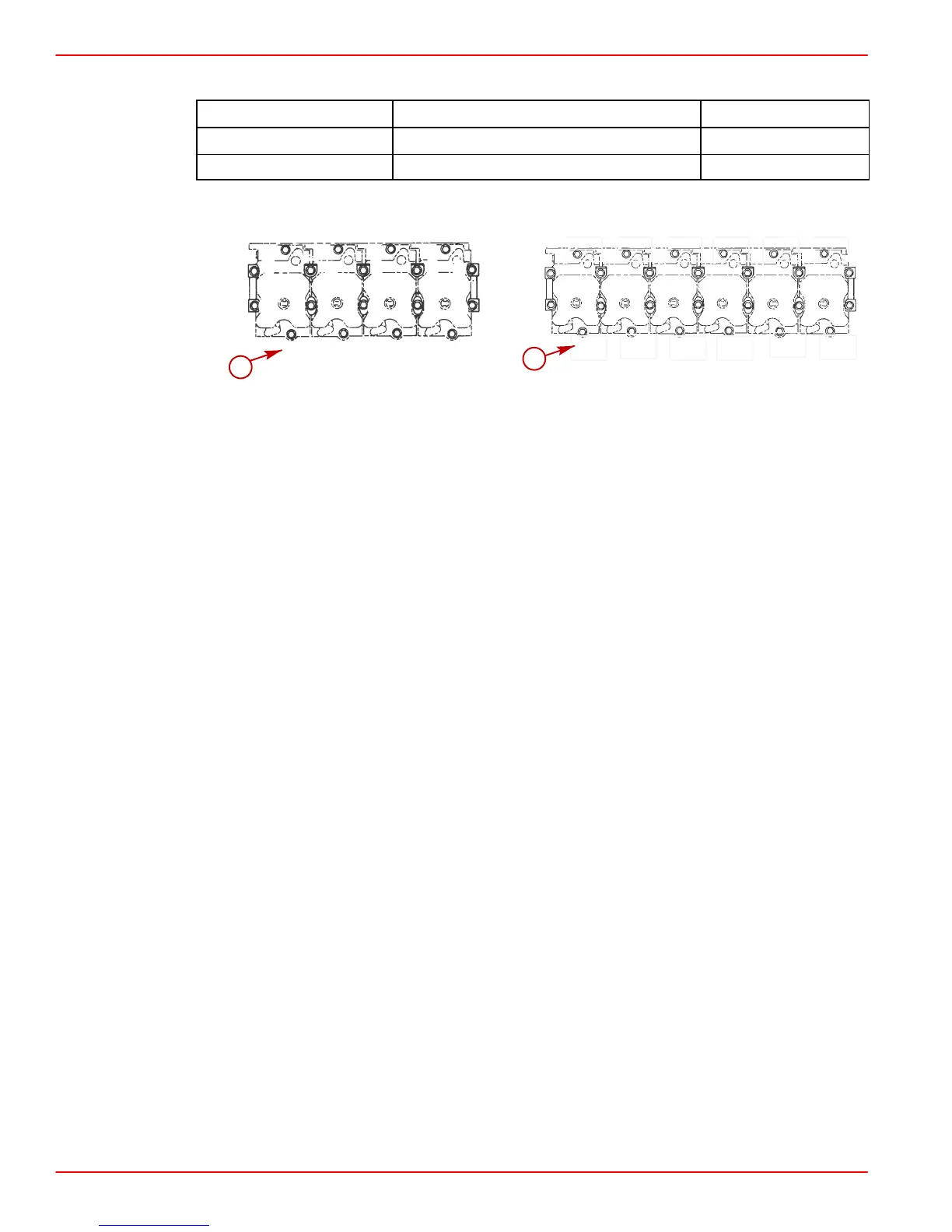

Side Bolt Torque Sequence Diagram

a-D2.8L D-Tronic Engine

b-D4.2L D-Tronic Engine
