ENGINE MECHANICAL SERVICE MANUAL NUMBER 22
Page 3A-76 90-860074--1 FEBRUARY 2002
3. Install rocker assembly onto studs. Simultaneously align valve push rods with rocker
arm sockets.
75401
c
a
b

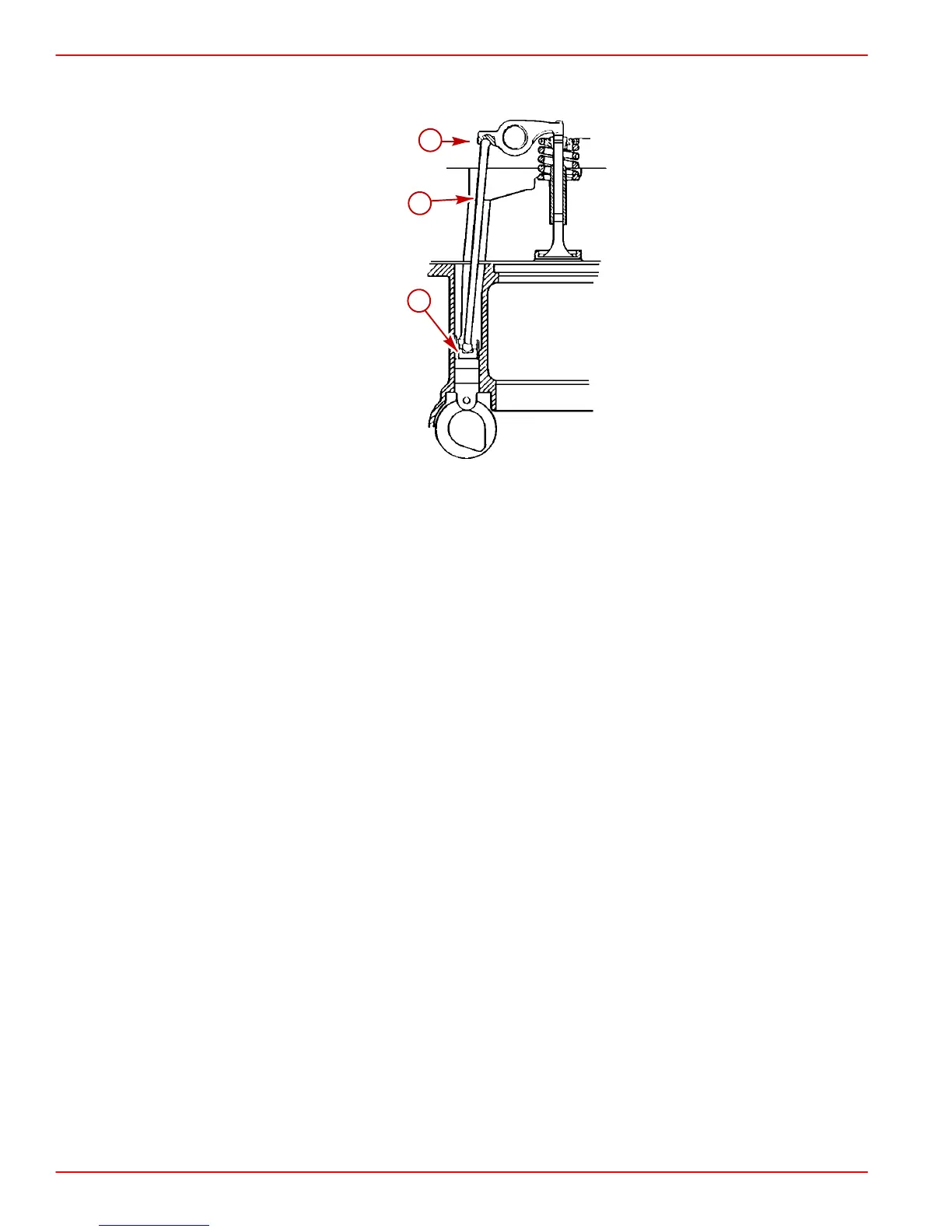

Typical Cross-Section View
a-Push Rod
b-Lifter Socket
c-Rocker Arm Socket
4. Install both flanged nuts on rocker arm support. Torque evenly to 34 Nm (25 lb-ft).
IMPORTANT: No valve adjustment is required. Valve lash is automatically set when
rocker arm nuts are torqued as specified.
5. Refer to appropriate procedures and reassemble remaining components.
