ENGINE MECHANICAL SERVICE MANUAL NUMBER 22
Page 3A-142 90-860074--1 FEBRUARY 2002

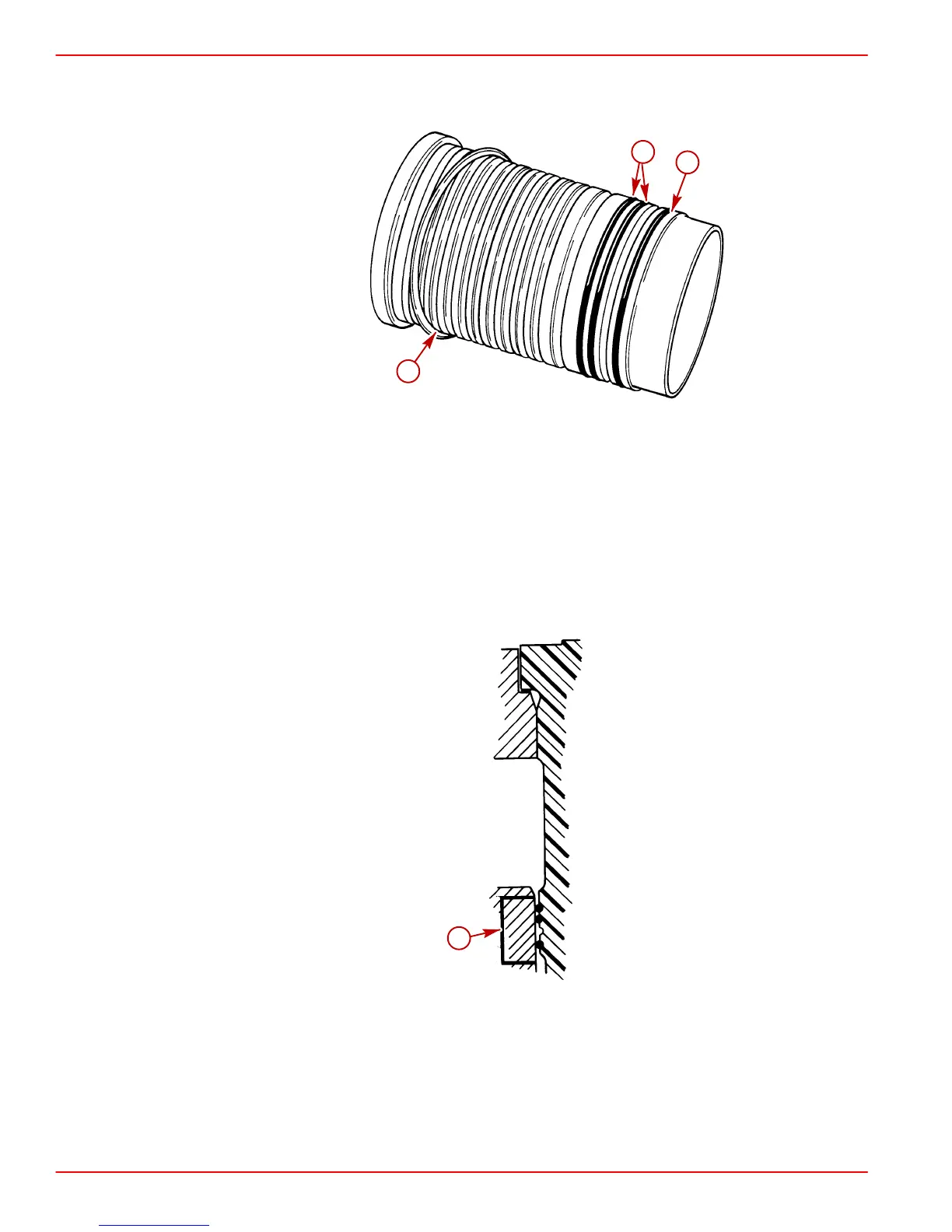

5. Install two BLACK O-rings in the grooves near the neck of the liner and one BROWN
O-ring in groove at the bottom, as shown.
70416
a
b
c
a-Shim
b-Black O-Rings (2)
c-Brown O-Ring (1)
6. Lubricate LOWER centering collars in cylinder block (those areas where lower liner
O-rings seal against the bore) with Needle Bearing Lubricant 92-42649A1 or clean
engine oil as shown.
IMPORTANT: Do NOT lubricate upper bore area.
NOTE: Liner shown fitted ONLY for visual clarity. Do NOT install liners in this step.
50491
a
a-Lubricate This Area Of Cylinder Block (Lower Centering Collars)
To Next Page
