INJECTION PUMP SERVICE MANUAL NUMBER 22
Page 5D-24 90-860074--1 FEBRUARY 2002

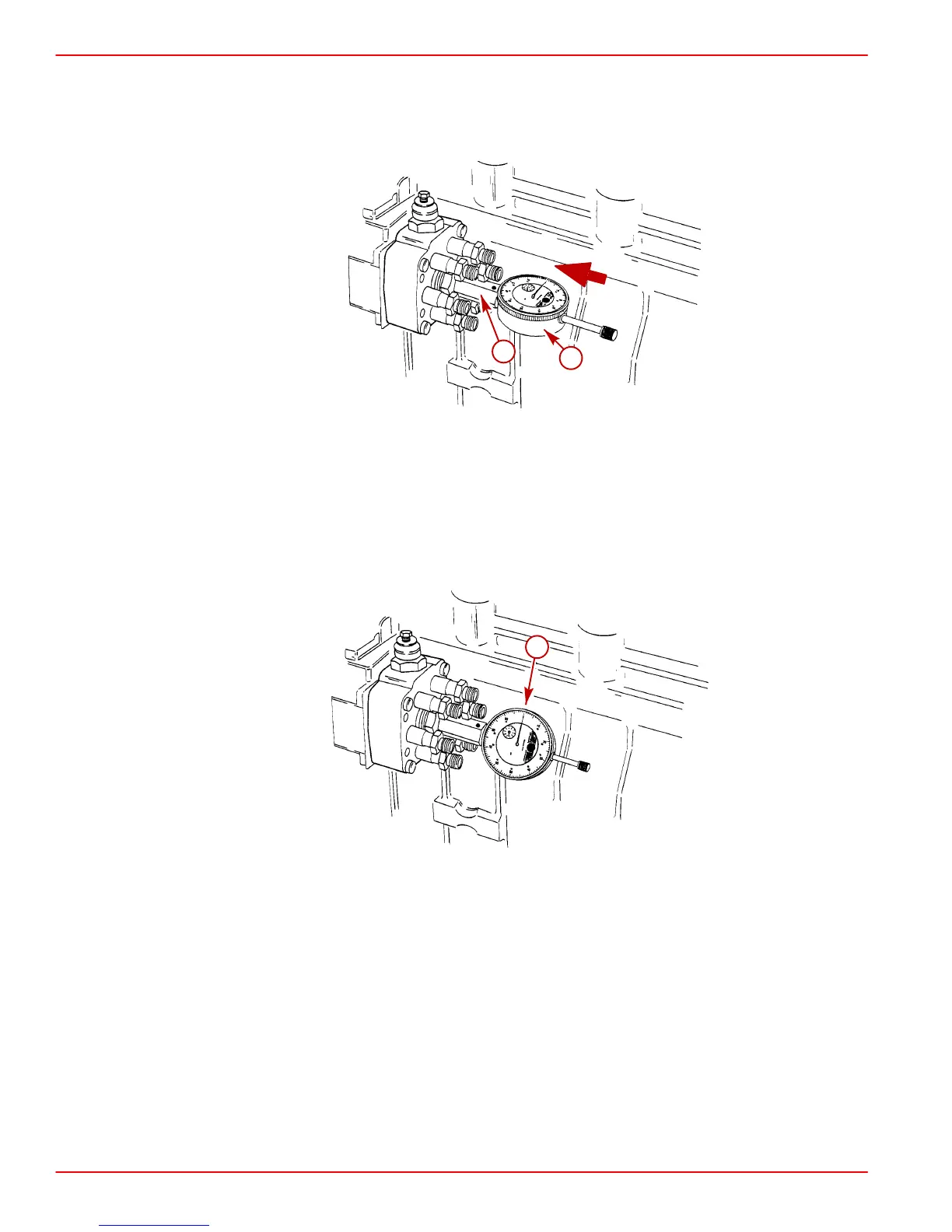

3. Install adaptor tool and dial gauge as shown. Pre-load the dial indicator with at least
2.54 mm (0.10 in.).
NOTE: Adaptor tool 854220 is designed to use on EDI engines.
70430
a
b
a-Suitable Adaptor Tool
b-Dial Gauge - Preloaded
4. Watch dial indicator needle and SLOWLY rotate the crankshaft
COUNTERCLOCKWISE (viewed from water pump end looking toward flywheel) until
dial indicator STOPS moving.
5. Set the dial indicator to zero (0) as shown.
70431
a
a-Dial Indicator
To Next Page
