EDI DIAGNOSIS
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 5E-109

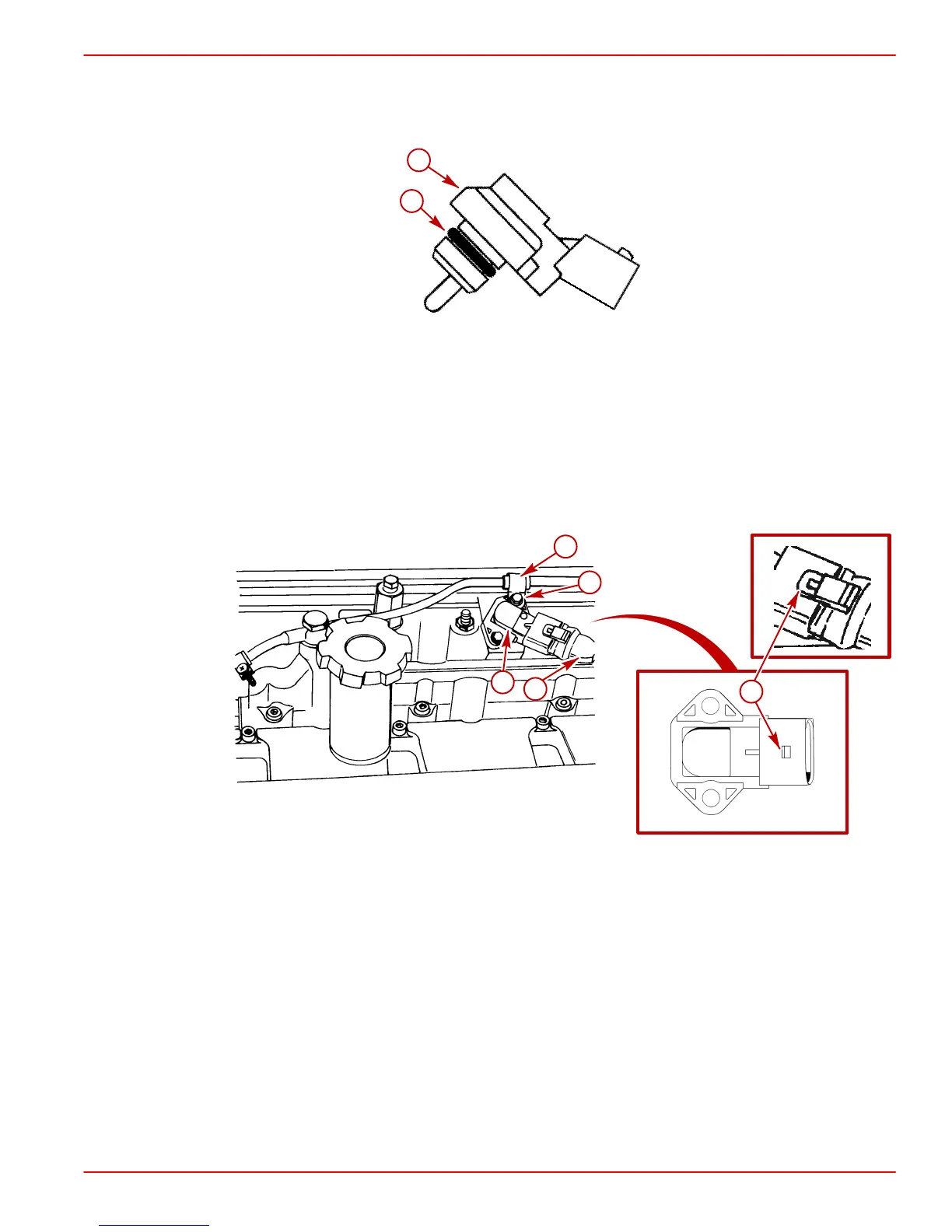

INSTALLATION
1. Install new O-ring on MAP/IAT sensor.
75408
a
b
a-O-ring
b-MAP/IAT Sensor
2. Install MAP/IAT sensor to plenum using screws. Insert upper screw through J-clip for
coolant pipe and then through the sensor to the intercooler. Torque screws to specifica-
tions.
3. Attach and lock the engine harness electrical connector to the MAP/IAT sensor.
75582
75410
a
b
c
d
e
a-MAP/IAT Sensor
b-Electrical Connector
c-Lock
d-Screw
e-J-clip
TESTING
Refer to Diagnostic Circuit Checks for information and procedures.
