SEAWATER COOLING SYSTEM SERVICE MANUAL NUMBER 22
Page 6A-16 90-860074--1 FEBRUARY 2002

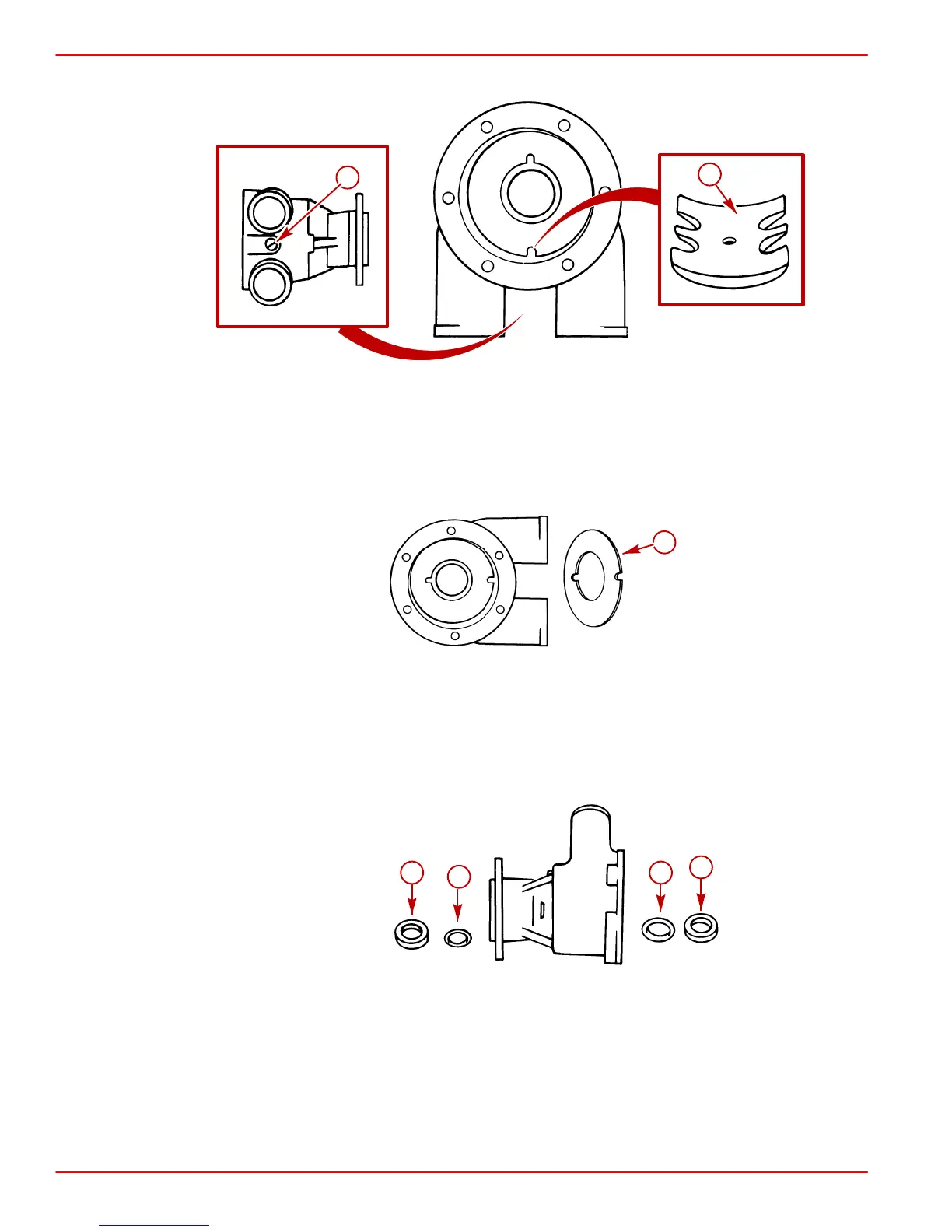

9. Remove screw from between inlet and outlet to allow cam removal.
70632
a
b
70638
Typical Pump and Cam
a-Screw
b-Cam
10. Remove thrust washer from its position on locating pin in pump housing.
a
70631
Typical Pump and Thrust Washer
a-Thrust Washer
11. On D2.8L D-Tronic pumps: Using a suitable tool, remove two lipseals, one spacer, and
one slinger ring from pump housing. Notice positioning.
70637
a
b
c
d
a-Primary Lipseal
b-Spacer
c-Slinger Ring
d-Lipseal
