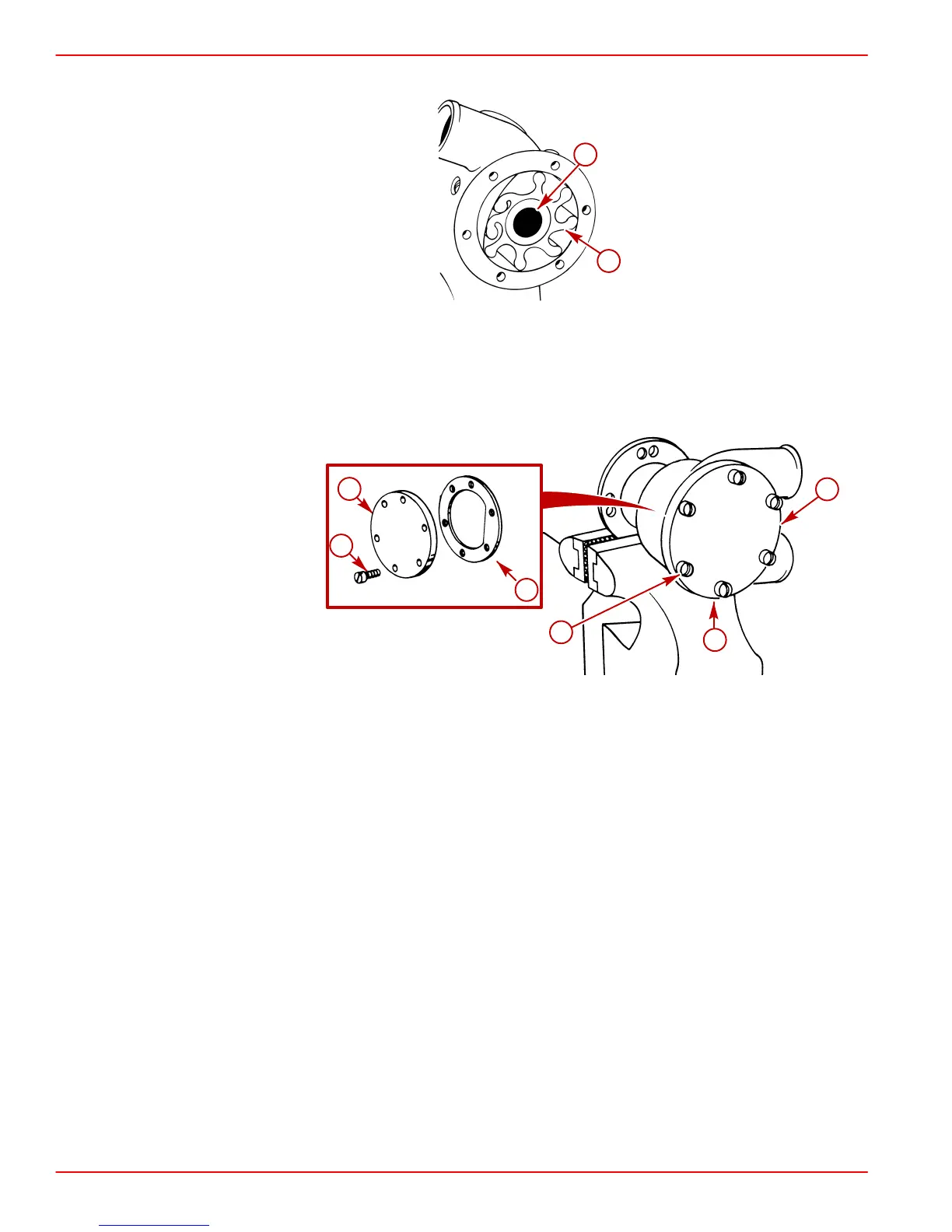

16. Push rubber button seal into end of impeller.
70627
a
b
a-Rubber Button Seal
b-Impeller
17. Install gasket (wide surface on cam side) and cover. Tighten screws evenly in a diagonal
pattern. Tighten securely.
70625
70625
c
a
c
a
b
b
Typical Pump and Cover
a-Cover
b-Gasket (Wide Surface On Cam Side)
c-Screws (6)
