INTERCOOLER
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 7A-19

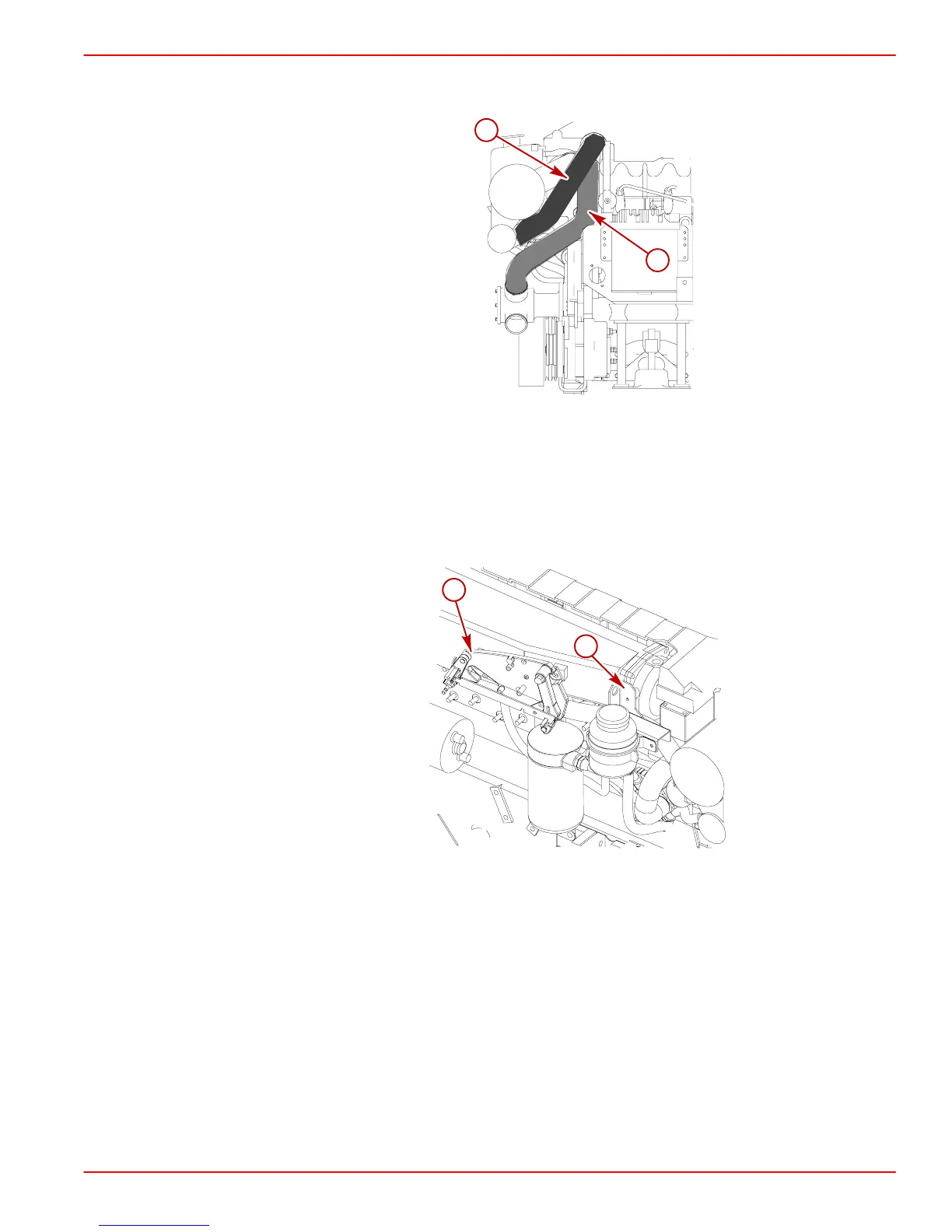

6. Install seawater hoses from seawater pump-to-intercooler and from intercooler-to-heat
exchanger. Tighten Hose clamps securely.
75298
b
a
a-Seawater Pump-to-Intercooler Hose
b-Intercooler-to-Heat Exchanger Hose
7. On Sterndrive (MCM) Engines:
a. Install sterndrive shift bracket onto side of intercooler. Tighten screws securely.
b. Install engine lifting eye bracket onto intercooler end cover. Tighten screws securely.
75300
a
b
a-Shift Bracket
b-Engine Lifting Eye Bracket
