TURBOCHARGER
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 7C-27
16. Install seawater hose from fluid cooler-to-exhaust elbow, or riser if equipped. Tighten
hose clamp securely.
17. Position exhaust hose as shown. Tighten hose clamps securely.
75297
d
f
e
b
c
a

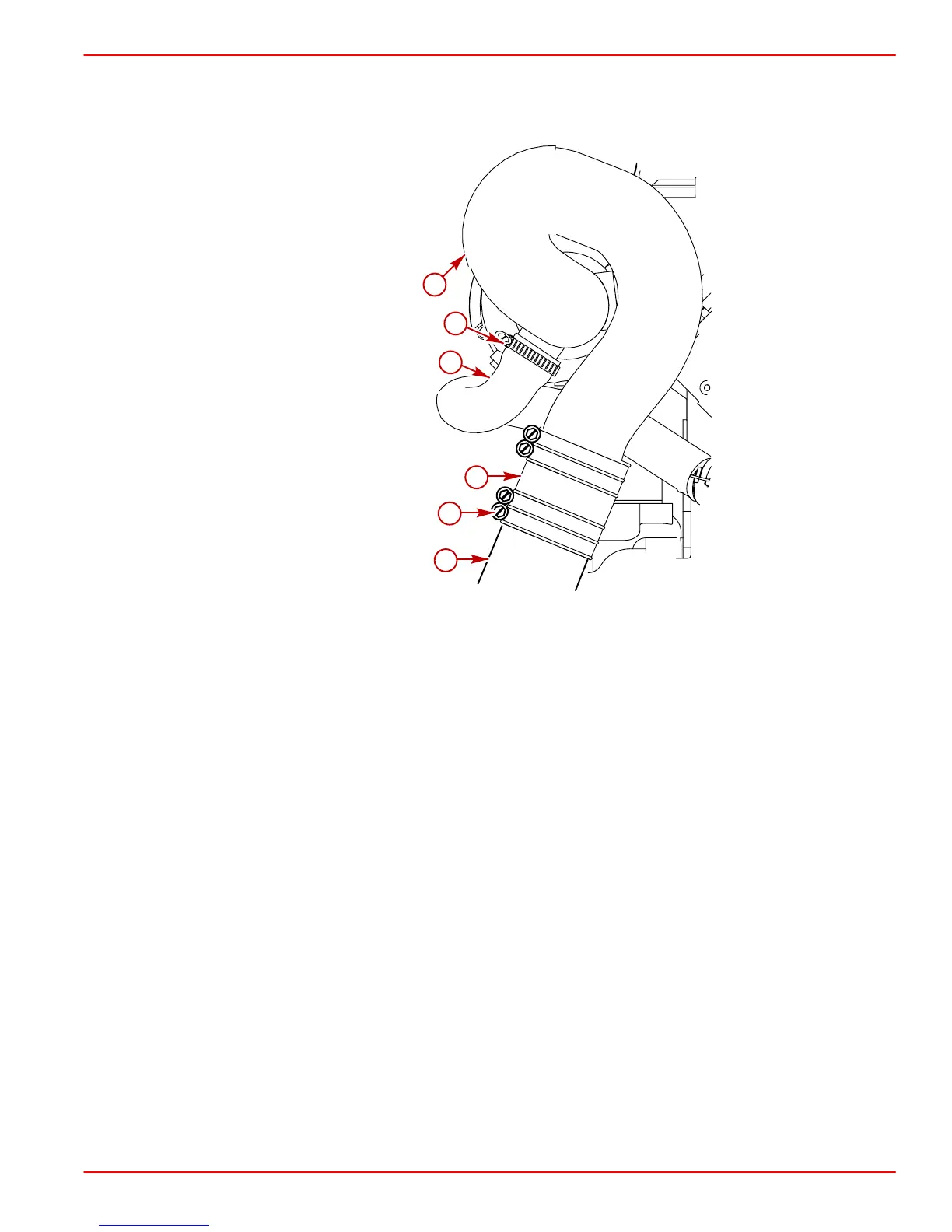

Typical Riser Installation
a-Exhaust Riser
b-Seawater Hose From Fluid Cooler
c-Clamp, Seawater Hose
d-Exhaust Hose
e-Clamp, Exhaust Hose
f-Exhaust Pipe
18. Fill closed cooling system at this time according to instructions in SECTION 6B - Closed
Cooling System, Filling Closed Cooling System.
19. Connect battery cables to battery by FIRST installing positive (+) battery cable end on
positive (+) battery terminal. Tighten clamp securely. THEN install negative (–) battery
cable end on negative (–) battery terminal. Tighten clamp securely.
20. Start engine and check for leaks.
21. Test turbocharger boost pressure as previously outlined.
