TURBOCHARGER SERVICE MANUAL NUMBER 22
Page 7C-30 90-860074--1 FEBRUARY 2002
INSTALLATION
1. Install new gasket on wastegate flange.
2. Using hex nuts or screws, with lockwashers, install wastegate exhaust pipe. Tighten
fasteners securely.

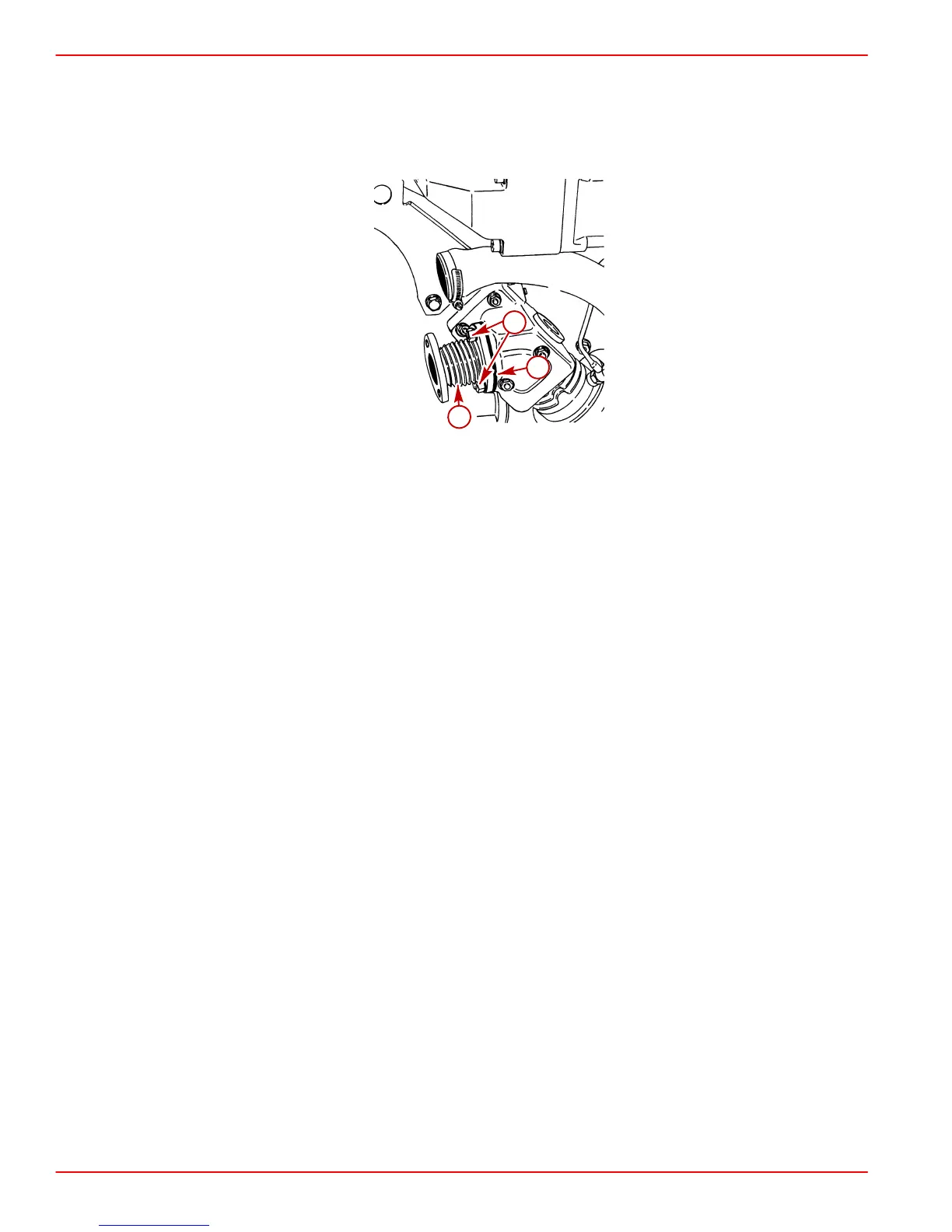

71004
b
c
a
Typical
a-Gasket
b-Wastegate Exhaust Pipe
c-Hex Nuts With Lockwashers
3. Install turbocharger exhaust elbow. Refer to Turbocharger - Installation as previously
outlined, and accomplish appropriate instructions regarding installation of exhaust elbow or
riser.
