4. Remove old belt.
5. Install new belt.
6. Pivot the power steering pump. Adjust belt deflection to be 5 mm (3/16 in.) measured
at midpoint between the pulleys on the longest belt span.
7. Torque tensioning and mounting bolts to 21 Nm (15 lb-ft).
a
b
c
a
73521
70113

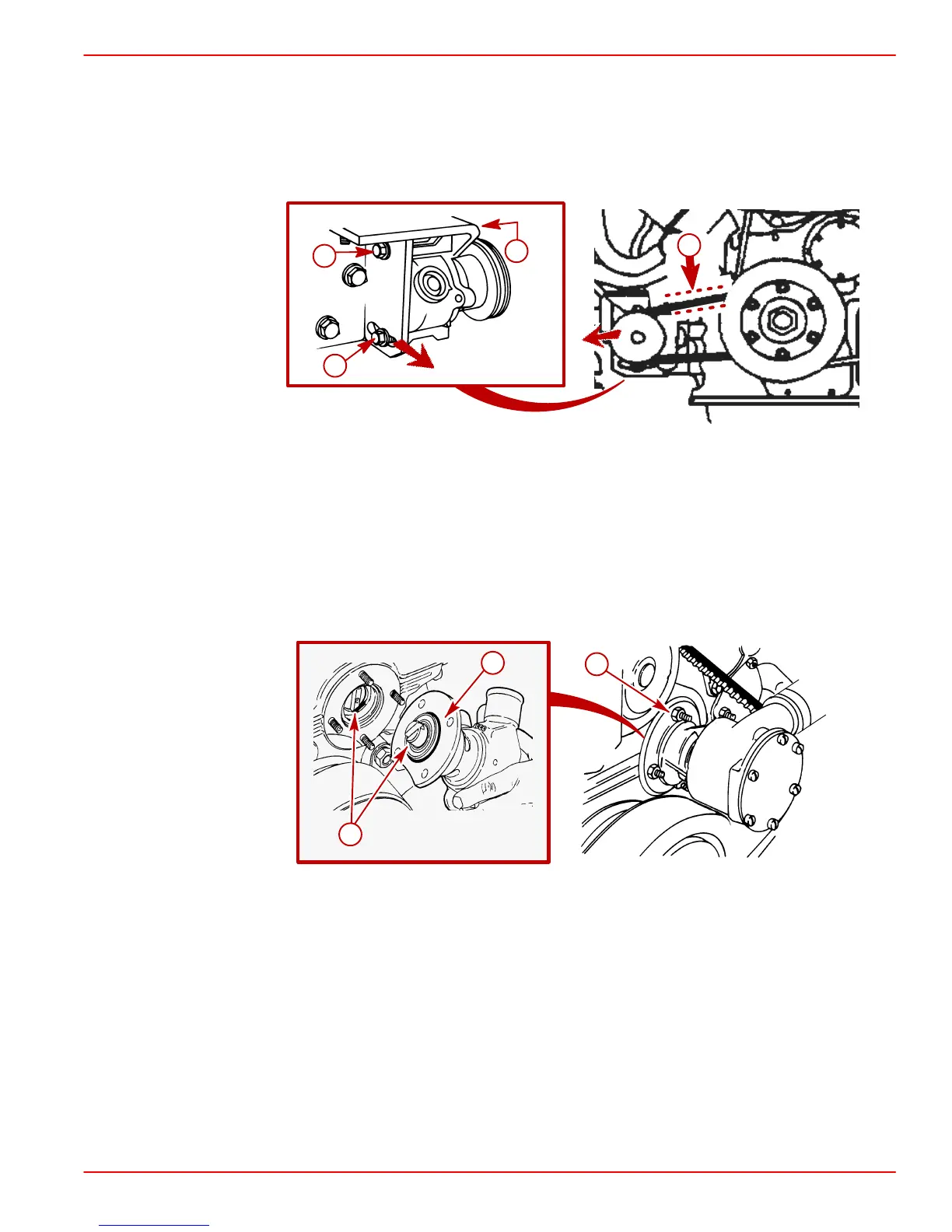

a-Mounting Bolts (1 Not Shown)
b-Tensioning Bolt
c-Deflection: 5 mm (3/16 in.)
IMPORTANT: There is an o-ring seal on the seawater pump.
8. Ensure that the o-ring seal is in the proper position before installing the seawater pump.
Also, ensure the pump and keyway align.
9. Install the seawater pump.
23161
70243
c
b
a
a-O-ring
b-Key And Keyway
c-Hex Nut With Washer
10. Install the seawater pump inlet and outlet hoses.
11. Open the seacock if equipped, or remove plug from seawater inlet hose and reconnect
hose.
