2. Remove the dipstick. Wipe the dipstick with a clean, lint‑free cloth. Check the oil level as outlined in Checking.

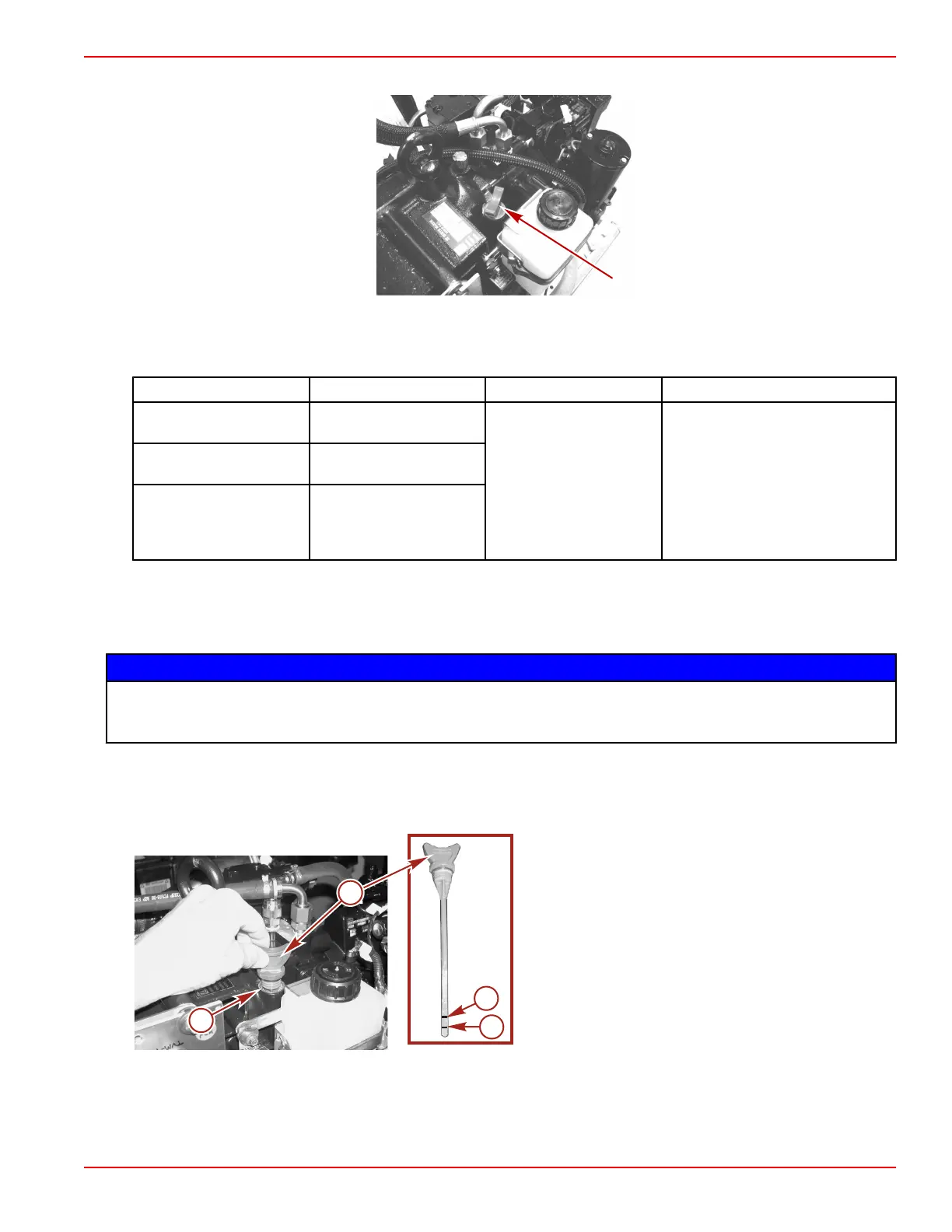

Transmission dipstick
3. Add the specified transmission oil through the dipstick threaded hole to bring the level up to the maximum mark on the dipstick.
Description Fluid Capacity Fluid Type Fluid Part Number
Transmission only (without
drop box)
4 L (4‑1/4 US qt)
Synthetic Power Steering
Fluid SAE 0W‑30
92‑858077K01
Transmission and drop
box
5‑1/4 L (5‑1/2 US qt)
Transmission, drop box
and remote (engine
mounted) transmission oil
cooler
5‑1/2 L 6 US qt)
IMPORTANT: For a more accurate measurement, operate the engine at 1500 RPM for three minutes immediately before
checking the oil level.
NOTE: Additional transmission oil may be required to fill empty cavities in the transmission filter and oil coolers after changing
the transmission oil. Always use the dipstick to establish the correct oil level.
NOTICE
The seawater pumps on vessels equipped with Zeus pod drives can be damaged by excessive exhaust aeration due to
inadequate water flow. To ensure adequate water flow across the seawater inlets, make sure that the vessel is underway before
exceeding 1500 RPM.
4. Start the engine and operate at 1500 RPM for three minutes to fill all of the hydraulic circuits and empty cavities. To avoid
excessive exhaust aeration of the seawater, do not operate the engine above 1500 RPM.
5. Stop the engine. Quickly unscrew and remove the dipstick.
6. Check the oil level. Refer to Checking.
a - Maximum mark
b - Minimum mark
c - Top of threaded hole
d - Dipstick
7. If the oil level is low, add the specified transmission oil to bring the level up to the maximum mark on the dipstick.
8. Install the dipstick.
9. Install the access cover onto the drive cover if it was removed.
10. Install the drive cover if it was removed. Refer to Installing the Drive Cover.
