Auxiliary Joystick Station—Special Features
General Information
Each auxiliary joystick station is equipped with an E‑stop switch, auxiliary joystick, and a trackpad.

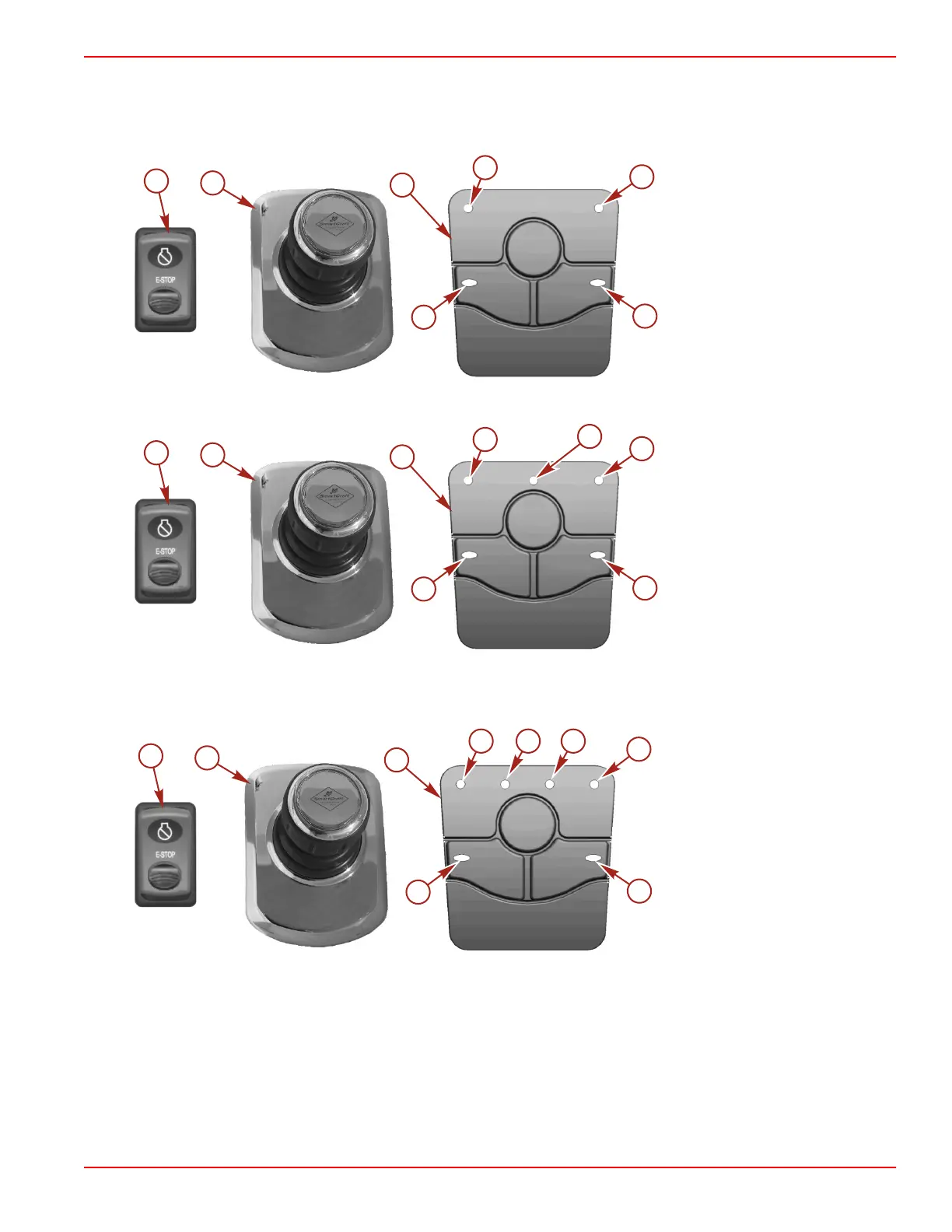

Typical auxiliary joystick station
components for dual drives
a - E‑stop switch
b - Auxiliary joystick
c - Joystick trackpad for triple
installations
d - Port drive status indicator light
e - Starboard drive status indicator
light
f - Transfer button and indicator
light
g - Alarm button and fault indicator
light
Typical auxiliary joystick station
components for triple drives
a - E‑stop switch
b - Auxiliary joystick
c - Joystick trackpad for triple
installations
d - Port drive status indicator light
e - Center drive status indicator
light
f - Starboard drive status indicator
light
g - Transfer button and indicator
light
h - Alarm button and fault indicator
light
Typical auxiliary joystick station
components for quad drives
a - E‑stop switch
b - Auxiliary joystick
c - Joystick trackpad for quad
installations
d - Port drive status indicator light
e - Port center drive status indicator
light
f - Starboard center drive status
indicator light
g - Starboard drive status indicator
light
h - Transfer button and indicator
light
i - Alarm button and fault indicator
light
The trackpad includes:
• indicator lights for drive train status (2 for dual, 3 for triple, and 4 for quad installations),
• an alarm button equipped with a fault (alarm) indicator light,
