Section 3 - On the Water
90-879172181 eng FEBRUARY 2011 Page 47

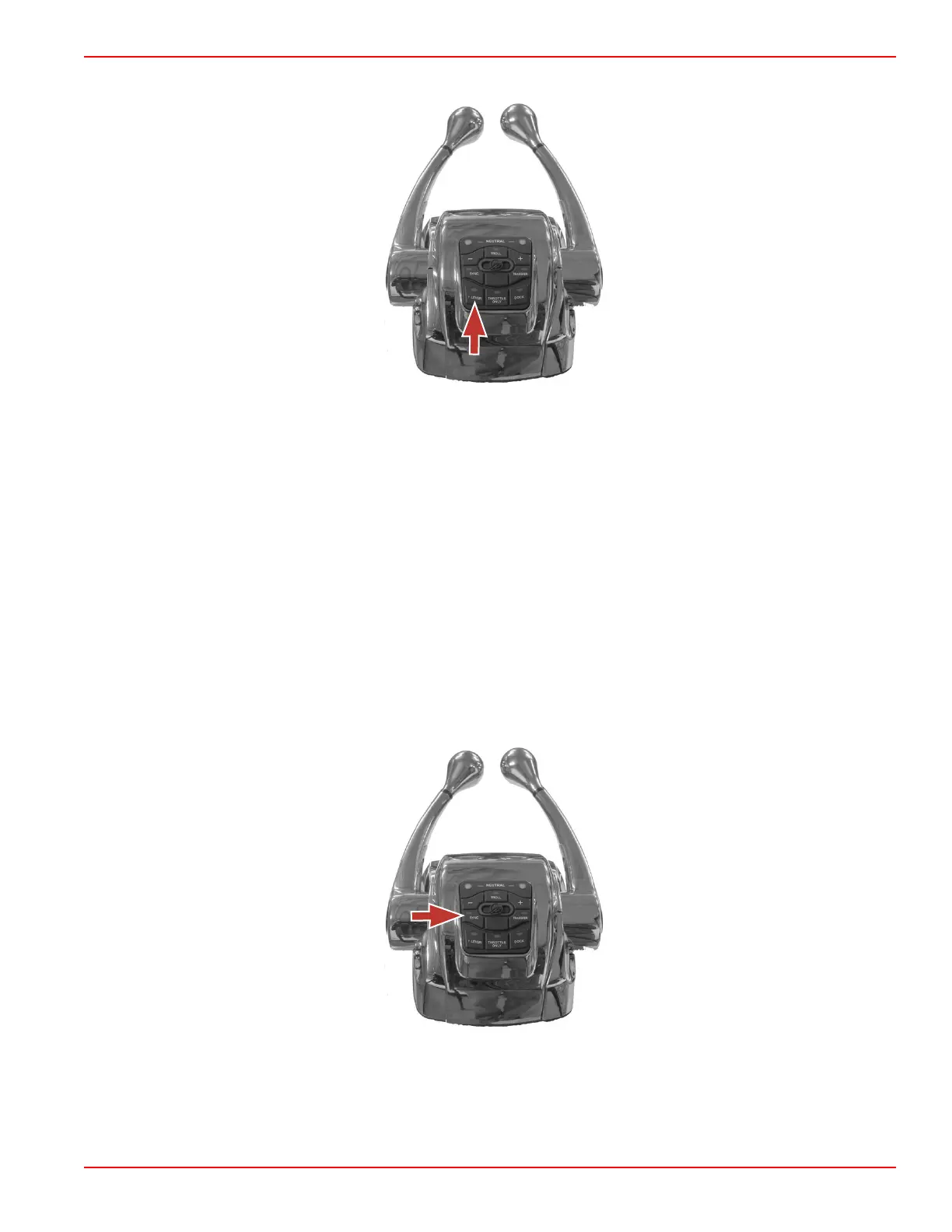

2. Press the "1 LEVER" button located on the DTS trackpad attached to the ERC levers.
31466
"1 LEVER" button
3. The "1 LEVER" button light turns on.
4. Place the starboard ERC lever into gear.
5. The engine RPM raises and lowers simultaneously while the transmissions remain in the same gear.
To disengage the single lever (1 Lever) mode:
1. Place both ERC levers in neutral.
2. Press the "1 LEVER" button. The "1 LEVER" button light turns off.
Synchronizing the Engines
The system features an automatic engine synchronization feature called Sync. Sync engages automatically at key‑up. The
synchronization feature monitors the position of both ERC levers. If both levers are within 10% of one another, all engines
synchronize to the same RPM.
The trackpad "SYNC" button light illuminates in yellow if the RPM of the engines are not within 10% of each other. The same light
illuminates in green when the engines synchronize. The "SYNC" button light appears grey when Sync mode is not engaged.
To disengage Sync mode:
1. Place the ERC levers in any detent.
2. Press the "SYNC" button.
31467
"SYNC" button
To re‑engage Sync mode, press the "SYNC" button.
