Section 5 - Maintenance
90-879172181 eng FEBRUARY 2011 Page 75
While inspecting the power package and drive, certain components can be damaged by the weight of an individual and must not
be used as a step. Decals on top of the drive components indicate where no step is allowed. Do not step on components with a
decal.

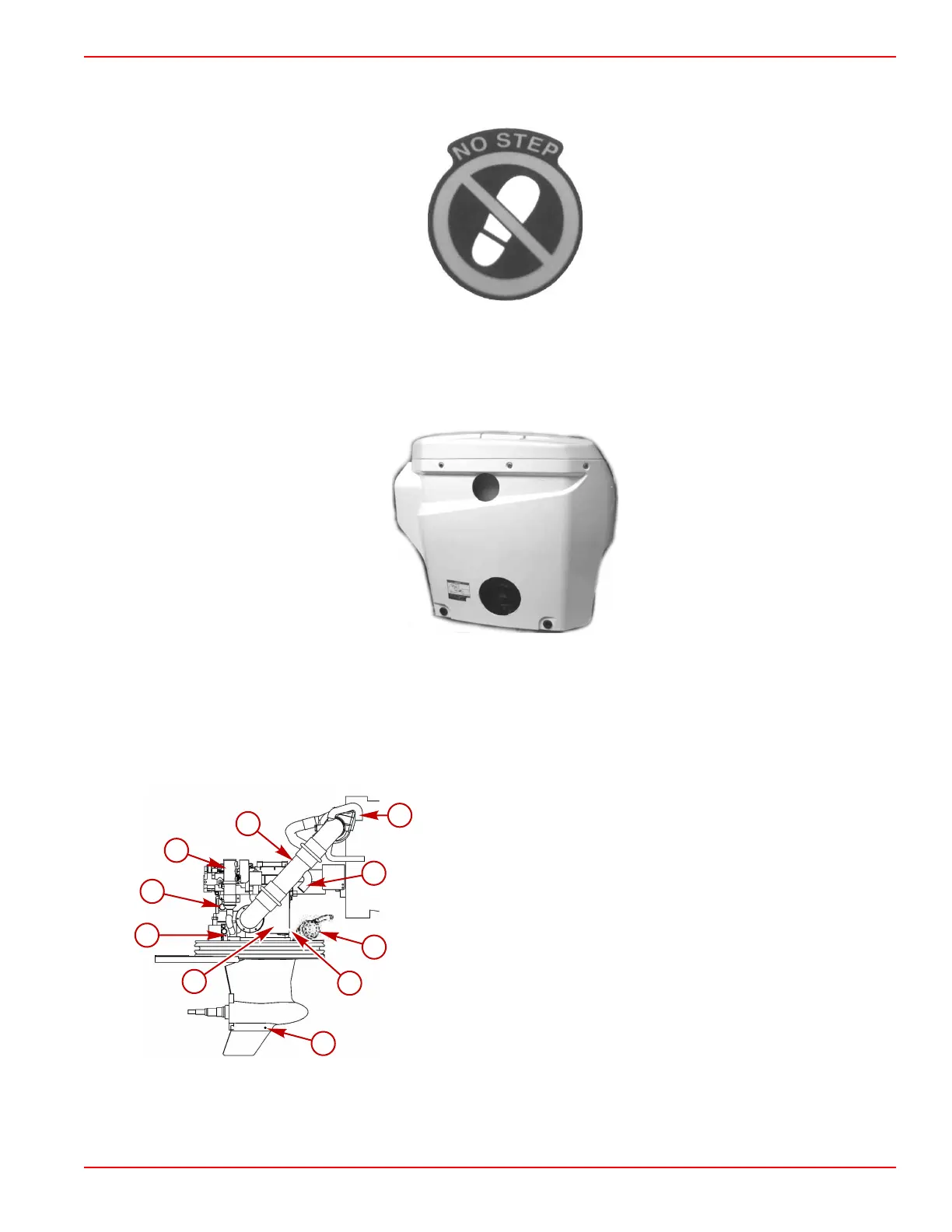

Decal placed where no step is allowed
The Zeus drive cover, if equipped, protects and separates some components after the drive is installed. The drive cover provides
added protection against damage to the hoses and other components as a result of mechanical hose abrasion during operation
or damage to the hoses, such as being stepped on during service or maintenance. If equipped, keep the drive cover installed
except when removed for service.
Typical drive cover, if equipped
For information on removing the drive cover, refer to Drive Cover, If Equipped.
Drive Service Point Locations
Starboard
a - Seawater return (discharge) valve (if equipped)
b - Transmission fluid drain plug
c - Hydraulic oil cooler
d - Exhaust outlet connection
e - Engine seawater return outlet
f - Muffler seawater bypass
g - Seawater inlet seacock
h - Hydraulic oil drain plug
i - Gearcase drain plug
j - Hydraulic oil reservoir
