Mercury Zeus User Manual

Section 5 - Maintenance
Page 76 90-879172181 eng FEBRUARY 2011

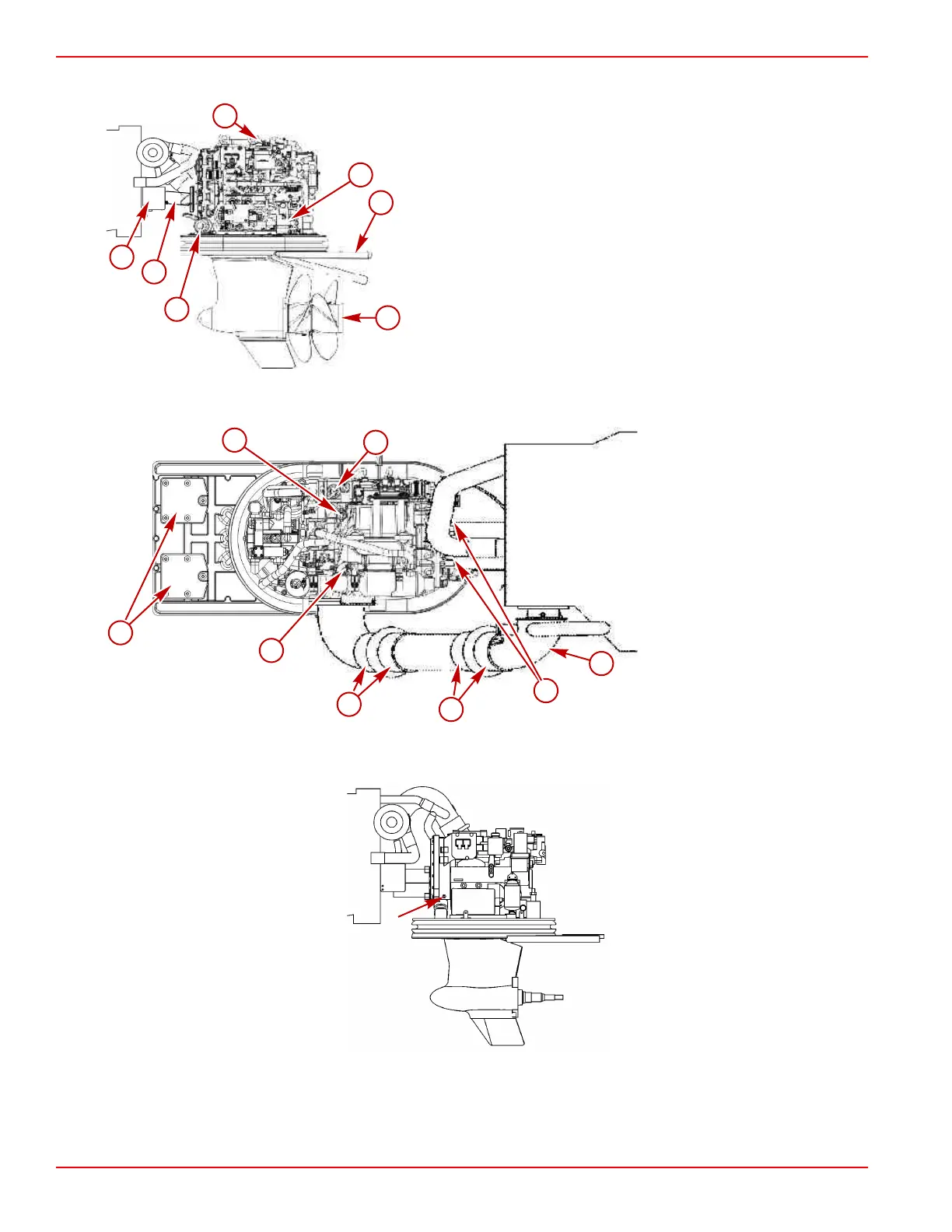

Port
a - Seawater inlet seacock (if drive mounted)
b - Driveshaft (under shield, if equipped)
c - Driveshaft shield
d - Gear lube monitor fill
e - Hydraulic fluid filter
f - Trim tab and anode plates
g - Propeller shaft
Top
a - Transmission dipstick
b - Gear lube monitor fill cap
c - Exhaust elbow
d - Driveshaft shield screws
e - Upper exhaust clamps
f - Lower exhaust clamps
g - Transmission filter
h - Anodes
Drop Box
35639
Drain plug or cap
d
e
c
f
g
41381
a
b
a
b
d
c
g
e
f
h
41460
