Section 3 - On the Water
90-879172181 eng FEBRUARY 2011 Page 57
Turn Buttons in Track Waypoint Mode
While in "TRACK WAYPOINT" mode, using the left or right "TURN" buttons on the keypad changes the mode to "AUTO HEADING."
Auto Heading Button in Track Waypoint Mode
While in "TRACK WAYPOINT" mode, pressing the "AUTO HEADING" button causes Pilot to change to "AUTO HEADING" mode.
Acknowledging a Turn During a Waypoint Arrival
IMPORTANT: Track Waypoint mode does not automatically turn the boat upon arrival at a plotted waypoint.
1. When the boat enters an waypoint arrival zone as indicated by the chart plotter a long, a short, and a second short horn beep
sounds and the "WAYPOINT SEQUENCING" button light starts blinking to inform the operator to make a turn.

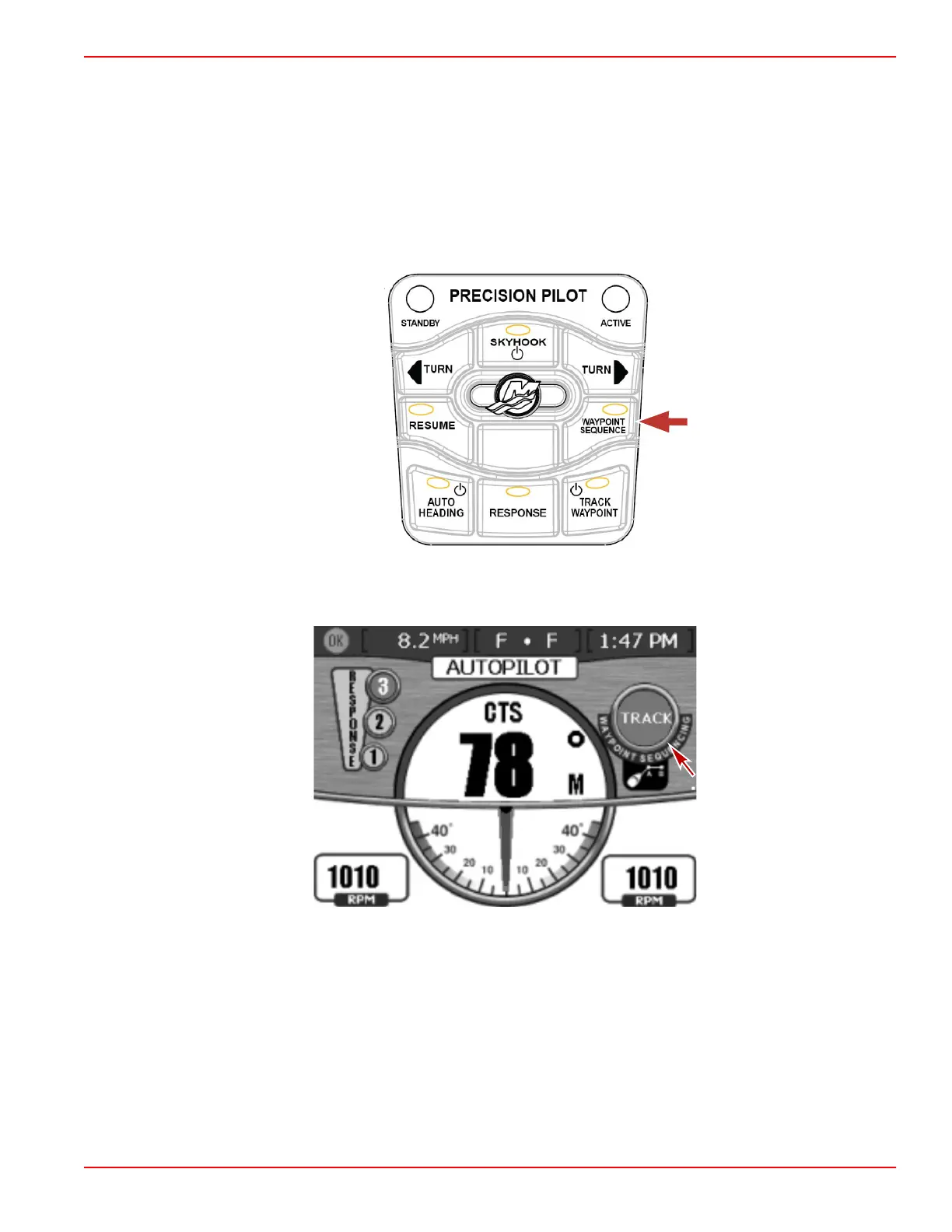

27703
"WAYPOINT SEQUENCE" button
2. If the Waypoint Sequence mode has not been engaged, the "WAYPOINT SEQUENCE" icon light blinks at the arrival zone.
Waypoint Sequence icon light—dual engine application screen shown
